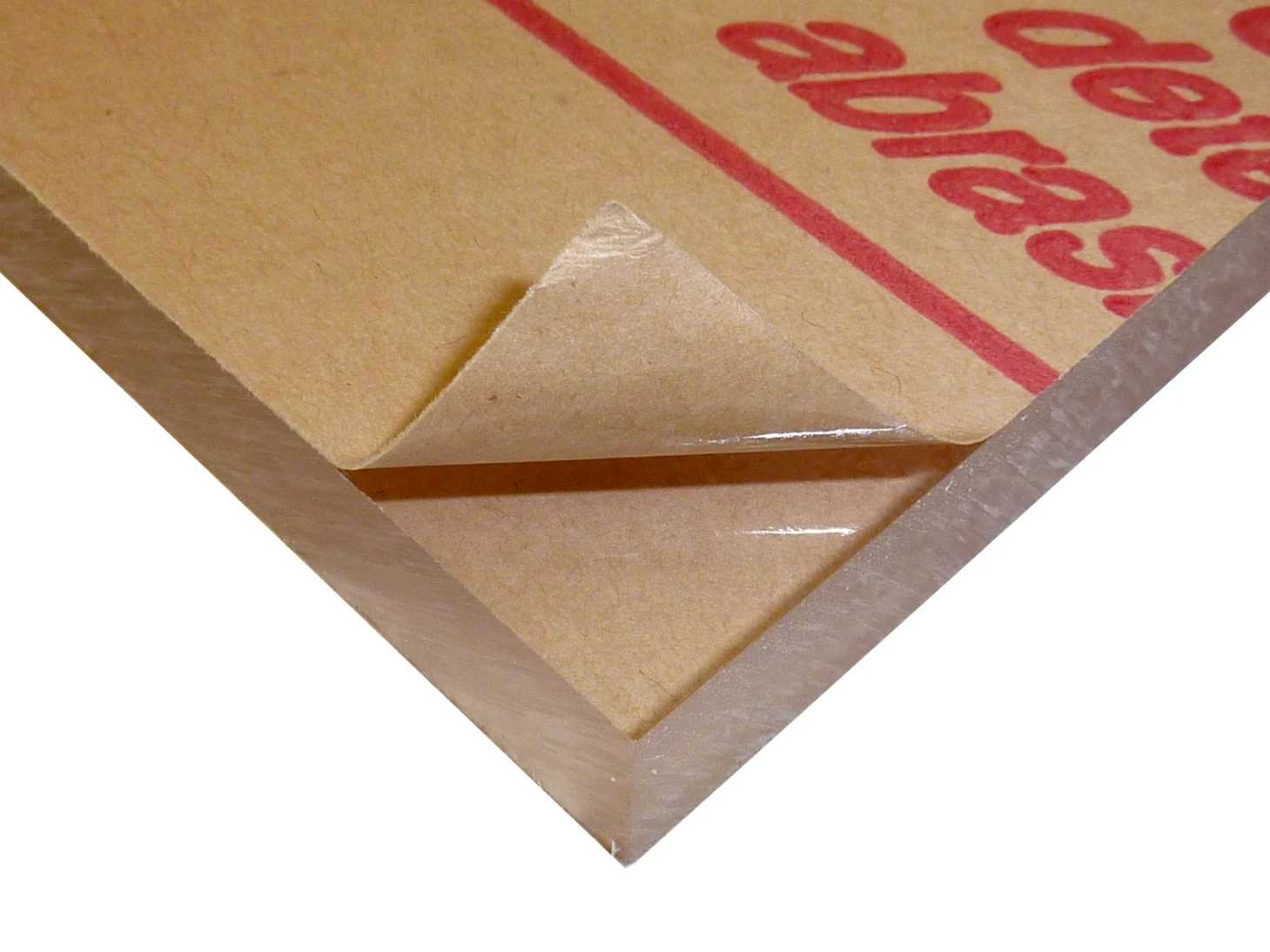

Acrylic Sheet | Clear Cast Paper Masked SD
PMMA, Poly(methyl methacrylate) with ESD coating
|Get Your Online Pricing:
Sanitizing Acrylic and Polycarbonate »
Tips for measuring & cut-to-size policy »
How To Measure and Cut-To-Size Policy [X]
Cut-To-Size Items are Non-Returnable!
As per our Shipping and Returns Policy, custom cuts and fabricated parts are non-returnable. If you need an over- or undersized item, note it under "Comments" during Checkout. Cut-to-size orders have an acceptable cut tolerance of 1/8" (0.125"), so clarify if the adjustment is to be made on the (+) or (-) side of the saw blade. Please review our full return and shipping policy here.
Measure Twice, Cut Once
Since custom cuts and fabricated parts are non-refundable, be very careful while measuring your dimensions. As each cut is nominal, even the slightest miscalculation could be costly.
How to Use a Measuring Tape
Extend your tape measure several inches to find the 1 and 2 inch markers. In between the inch markers you’ll find 16 equally spaced tick marks.
Measure by counting the increments beyond the nearest inch. As the increments decrease, so does the length of the mark. For example, 1/2" has a bigger mark than 1/4" which has a bigger mark than 1/8". The smallest mark follows at 1/16". Please be aware that some measuring tapes may have even smaller increments.
Features of a Measuring Tape: Sliding End Hook
The sliding end hook is designed for two different types of measurements. An outside measurement (where the hook of the tape hangs over an edge), requires the hook to slide out a bit to account for the thickness of the material. When making an inside measurement (where the hook will push up against a surface), the clip slides in, again, accounting for its thickness. The measuring tape self-adjusts to guarantee an accurate measurement (as far as the tape is concerned).
Sanitizing Acrylic and Polycarbonate Sheet [X]
Acrylic and Polycarbonate Sneeze Guards and like products require special care while cleaning and disinfecting. To maintain the optical clarity of sneeze guards and other acrylic or polycarbonate items, use an acrylic or polycarbonate safe cleaner like Novus Plastic Polish #1, Brillianize Plastic Cleaner, or a mild soap solution.
Please reference the following compatible cleaners when DISINFECTING acrylic and polycarbonate items. The use of commonly available commercial alcohol or ammonia-based disinfectants may cause crazing and damage.
Compatible Polycarbonate Disinfectants:
• sBioMed Steriplex SD
• Safetec Surface Wipes
• Contec Healthcare Perodox RTU
• Contec Healthcare PS-911 EB Prostat Sterile Wipes
Compatible Acrylic Disinfectants:
• Pharmacy Grade Hydrogen Peroxide
• Household Bleach
• Isopropyl Alcohol (Water Diluted to 30% Strength)
[Download as a PDF]
|As low as $9/month with |
Clear acrylic cast sheets are an economical alternative to polycarbonate (PC) when extreme strength is not necessary. It is often preferred because of its moderate properties, easy handling and processing, and low cost, but behaves in a brittle manner when loaded, especially under an impact force. Transmits up to 92% of visible light (3 mm thickness), and gives a reflection of about 4% from each of its surfaces on account of its refractive index. It has a density of 1.17-1.20 g/cm3, which is less than half that of glass. It also has good impact strength, higher than both glass and polystyrene. Clear acrylic cast SD sheets feature an ESD coating to prevent electrostatic build-up.
Acrylics have outstanding resistance to long-term exposure to sunlight and weathering. Acrylic has excellent optical properties and is more resistant to impact than glass. In addition, acrylic has low water absorption, good electrical resistivity, and fair tensile strength. Applications are infinite, including art installations, outdoor signs, glazing, aircraft canopies, skylights, automotive taillights, dials, buttons, lighting applications, knobs, and machine covers.
Cast acrylic is incredibly durable but is not bullet resistant. For maximum ballistic or repeated high force impact protection, Interstate Plastics recommends certain grades of polycarbonate sheets.
[PDF Spec Sheet]
Acrylic sheet is 17 times stronger than glass, has excellent clarity, durability, is lightweight and weatherable. Acrylic can be sawed, routed, drilled, formed, line bent, cemented and painted.
- ESD coating
- Lightweight and stronger alternative to glass
- Highly transparent (also available in opaque)
- Excellent resistance to UV damage
- Easy to machine, fabricate, and glue
- Low water absorption
NEED AN ACRYLIC SAMPLE?
Thermoplastics Material Sample Pack
Machinable Plastics Material Sample Pack
WARNING: This product can expose you to chemicals including Ethyl acrylate, CAS 140-88-5, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Warning: This product may have sharp edges and points. Contact may result in injury. Handle with care.
Disclaimer: Interstate Plastics makes no representations about any of its products that are modified in any way after they leave its possession, nor do its representations apply when any of its products are improperly used or stored.
Each customer of Interstate Plastics bears full responsibility for making its own determination as to the suitability of each material, product, recommendation or advice provided by Interstate Plastics. Each customer of Interstate Plastics must identify and perform all tests and analyses necessary to assure that its finished parts incorporating materials from Interstate Plastics will be safe and suitable for use under end-use conditions.
