As per our Shipping and Returns Policy, custom cuts and fabricated parts are non-returnable. If you need an over- or undersized item, note it under "Comments" during Checkout. Cut-to-size orders have an acceptable cut tolerance of 1/8" (0.125"), so clarify if the adjustment is to be made on the (+) or (-) side of the saw blade.Please review our full return and shipping policy here.
Measure Twice, Cut Once
Since custom cuts and fabricated parts are non-refundable, be very careful while measuring your dimensions. As each cut is nominal, even the slightest miscalculation could be costly.
How to Use a Measuring Tape
Extend your tape measure several inches to find the 1 and 2 inch markers. In between the inch markers you’ll find 16 equally spaced tick marks.
Measure by counting the increments beyond the nearest inch. As the increments decrease, so does the length of the mark. For example, 1/2" has a bigger mark than 1/4" which has a bigger mark than 1/8". The smallest mark follows at 1/16". Please be aware that some measuring tapes may have even smaller increments.
Features of a Measuring Tape: Sliding End Hook
The sliding end hook is designed for two different types of measurements. An outside measurement (where the hook of the tape hangs over an edge), requires the hook to slide out a bit to account for the thickness of the material. When making an inside measurement (where the hook will push up against a surface), the clip slides in, again, accounting for its thickness. The measuring tape self-adjusts to guarantee an accurate measurement (as far as the tape is concerned).
Sanitizing Acrylic and Polycarbonate Sheet [X]
Acrylic and Polycarbonate Sneeze Guards and like products require special care while cleaning and disinfecting. To maintain the optical clarity of sneeze guards and other acrylic or polycarbonate items, use an acrylic or polycarbonate safe cleaner like Novus Plastic Polish #1, Brillianize Plastic Cleaner, or a mild soap solution.
Please reference the following compatible cleaners when DISINFECTING acrylic and polycarbonate items. The use of commonly available commercial alcohol or ammonia-based disinfectants may cause crazing and damage.

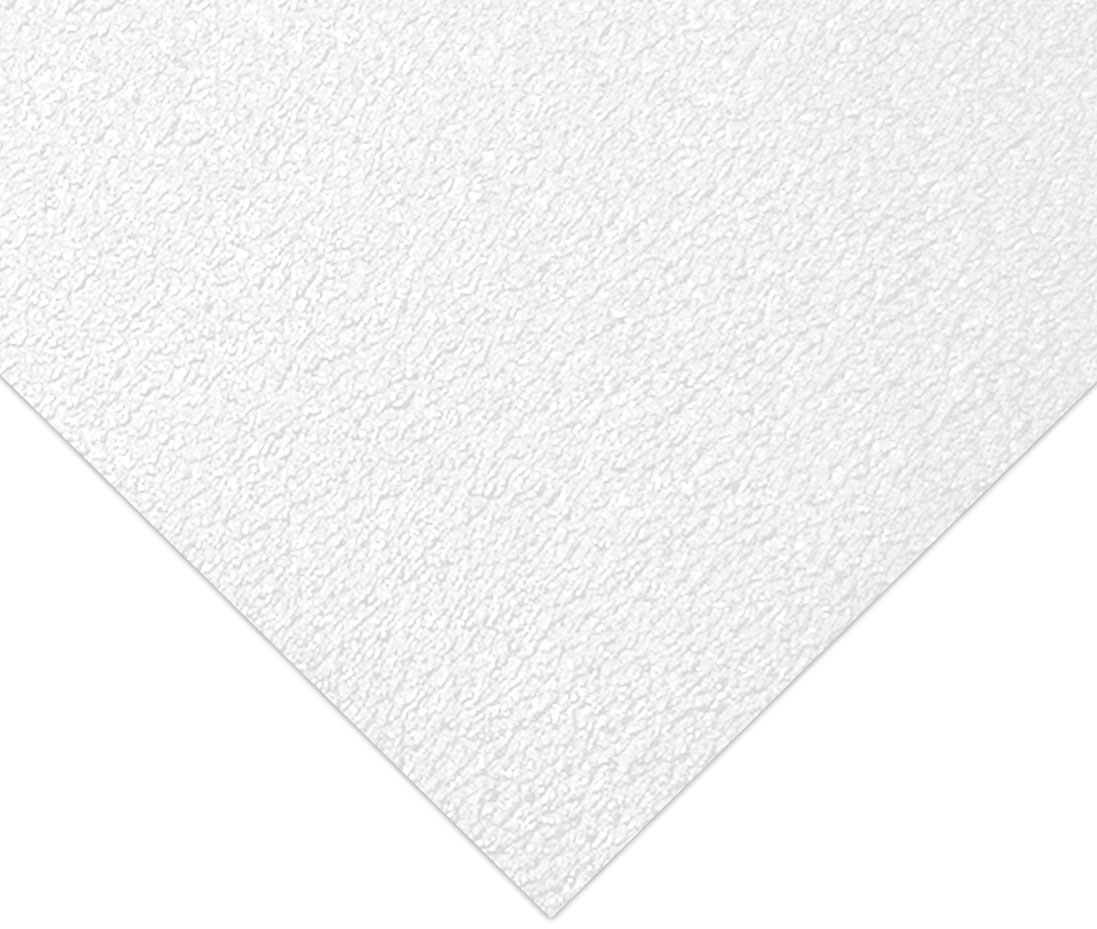

White Boltaron® 4330 for Impact-Resistant Thermoformed Parts
White Boltaron® 4330 is an extruded PVC/acrylic alloy sheet for impact-resistant thermoformed parts. It meets FAR 25.853(a) flammability requirements for applicable aircraft interior components and is available with a haircell texture.
The sheet has a typical notched Izod impact strength of 18 ft-lb/in at 73°F and retains wall thickness during deep draws and sharp-corner forming. No pre-drying is required before forming. These properties make it well suited for aircraft interior components, equipment housings, and insulating panels.
Choose this grade when aircraft interior parts or equipment components require the following combination:
High Impact Resistance:
Provides a notched Izod impact strength of 18 ft-lb/in at 73°F for parts exposed to repeated handling or impact.
Aircraft Interior Compliance:
Meets FAR 25.853(a)(i) and (ii) vertical-burn requirements for applicable aircraft interior components.
Reliable Thermoforming:
Retains wall thickness during deep draws and sharp-corner forming, supporting complex part geometries.
UL-Rated Flame Performance:
Available with UL 94 V-0, 5VB, and 5VA ratings at qualifying material thicknesses.
Clean White Appearance:
Provides a neutral white surface for visible aircraft interior parts and equipment housings.
Boltaron® 4330 vs. Kydex® T: Which Do You Need?
Both materials are thermoformable PVC/acrylic alloys. Select between them based on the required color, texture, flame-performance documentation, and material specification.
Choose White Boltaron® 4330 (This Sheet) when your application calls for high impact resistance, FAR 25.853(a) compliance, and this grade's specified UL 94 flame ratings.
Choose Kydex® T when your project calls for a particular Kydex® color or texture, or an established Kydex® material specification.
Boltaron® 4330 features a forming range of 335–370°F, with no pre-drying required. The sheet can also be cut, drilled, and routed using conventional methods appropriate for rigid thermoplastics. Actual heating cycles, tooling, draw depth, and other forming conditions should be validated for the finished part.
Watch: Boltaron Plastic
Material Warnings
WARNING: This product can expose you to chemicals including Vinyl chloride, CAS 75-01-4, and Ethyl acrylate, CAS 140-88-5, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Handling: Cut sheets may have sharp edges. We recommend wearing protective gloves when unpacking and handling this material to ensure safety.
Suitability: We take pride in the quality of our materials as they leave our facility. However, because every project is unique, we cannot account for how materials are modified, stored, or used after delivery. Please perform the necessary tests to ensure this material is right for your specific application and end-use conditions.
PVCW0H
Technical Performance
White Boltaron® 4330 is an extruded PVC/acrylic alloy developed for thermoformed components requiring high impact resistance, controlled flame performance, and reliable forming characteristics.
The sheet's typical notched Izod impact strength of 18 ft-lb/in at 73°F helps reduce damage in housings, panels, and other parts exposed to frequent contact or handling.
Flame Performance:
The grade meets FAR 25.853(a) and carries thickness-dependent UL 94 ratings for applications with documented flame requirements.
Thermoforming Performance:
Wall-thickness retention through deep draws and sharp corners helps limit excessive thinning in complex formed parts.
Key Properties
FAR 25.853(a) Compliant:
Passes the applicable 60-second and 12-second vertical-burn requirements for many aircraft interior components.
UL 94 Rated:
V-0, 5VB, and 5VA classifications are available at specified minimum thicknesses, allowing designers to match sheet gauge to applicable flame-rating requirements.
High Impact Strength:
The notched Izod impact strength is 18 ft-lb/in at room temperature.
Consistent Formability:
Predictable forming behavior and wall-thickness retention support repeatable production of drawn housings, covers, panels, and interior components.
No Pre-Drying Required:
The sheet can be thermoformed without a separate pre-drying cycle.
Common Industrial Applications
Aircraft Interior Components: Instrument panel housings, class dividers, bulkhead laminates, sidewall and kick panels, window reveals, seat components, and tray tables.
Galley & Lavatory Components: Thermoformed covers, panels, moldings, bull noses, and other interior components where impact and flame performance are design considerations.
Electrical & Equipment Housings: Formed equipment enclosures, insulating panels, and protective housings requiring a rigid, impact-resistant thermoplastic sheet.
Medical & Analytical Equipment: Housings and other formed components where durability, consistent appearance, and thermoformability are required.
Engineering Limitations & Alternatives
Boltaron® 4330 is designed around impact resistance, thermoformability, and FAR 25.853(a) flame performance. Another material may be more appropriate when certification, appearance, or cost requirements differ:
Aircraft Smoke & Heat Release Requirements: FAR 25.853(a) compliance does not by itself satisfy FAR 25.853(d) smoke and OSU heat-release requirements. Better Alternative: Specify an appropriate 9000 Series Boltaron® grade when the aircraft component requires additional smoke and heat-release compliance.
General-Purpose White Thermoforming: Projects that do not require Boltaron® 4330's specific FAR and UL performance may not need an aircraft-rated sheet. Better Alternative: For cost-sensitive, general-purpose projects such as formed covers, housings, and panels, consider White Extruded ABS.
Specific Color or Material Specification: White Boltaron® 4330 is appropriate when its grade and appearance match the design, but some projects require a particular Kydex® color, texture, or material specification. Better Alternative: For a white Kydex® option, consider Kydex® T Polar White #62000.
Boltaron® Thermoforming Hair Cell White Sheet Questions?
