King ColorCore® HDPE Plastic Sheet

King ColorCore® is a High Density Polyethylene material provided by Interstate Plastics for signage applications, and many other applications where high impact strength, abrasion resistance, and excellent chemical and weather resistance is desired.

ADDITIONAL COLOR COMBINATIONS AVAILABLE, CALL (916) 679-5146.


What is King ColorCore®?

High Density Polyethylene (HDPE) King ColorCore® is a versatile, durable and colorfast plastic used commonly for signage applications. It is environmentally and UV stabilized to withstand even the harshest outdoor conditions and can be used in areas that are washed often or regularly exposed to moisture. HDPE King ColorCore® can be fabricated using common woodworking tools and techniques.

Unlike other signage materials where color is achieved through lamination, HDPE King ColorCore® is manufactured by a unique PolyFusion process that fuses various layers of color into a single homogeneous sheet, which embeds color into the plastic. HDPE King ColorCore® is guaranteed not to delaminate, crack, or chip.

King ColorCore's® thin cap layers (approximately 10% of the thickness on each side) and bright primary colors (approximately 80% of the core) make it the ideal material for signage, marine, playground and other recreational applications. A thin cap also makes King ColorCore® easy to engrave.

Scratch resistant King ColorCore® is UV stabilized to resist deterioration in harsh outdoor environments as well as marking by pens, markers and spray paint. King ColorCore® can be cleaned easily with regular household cleaners.

King ColorCore® is available in several gauges and a rainbow of matched colors. Custom colors are available by custom order.

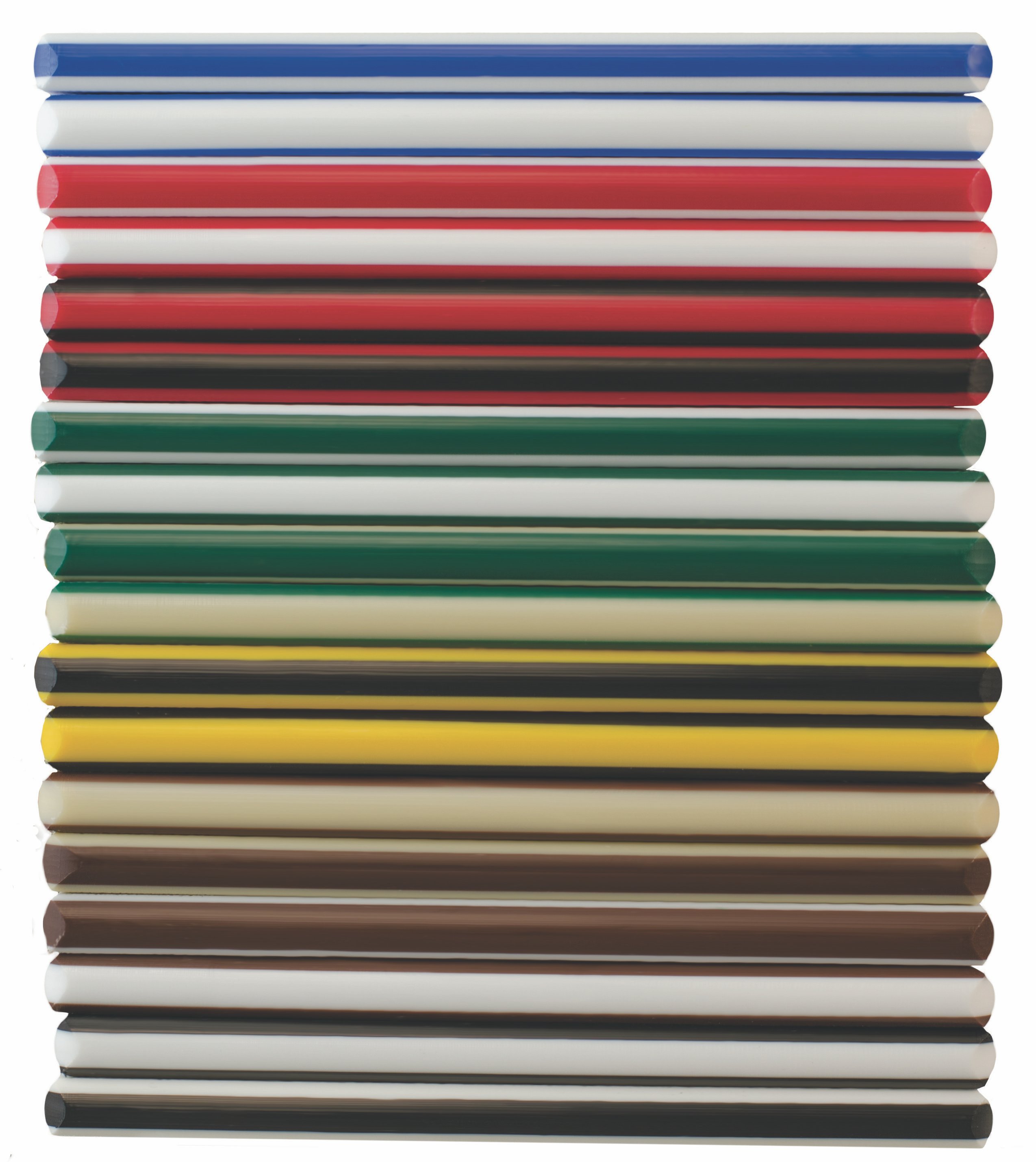

King ColorCore Color Options


  • Acid, odor, moisture, and mildew resistant
  • Extremely easy to fabricate and machine
  • Weather, impact resistant
  • Environmentally and UV stabilized
  • Excellent resistance to acids, alcohols, and bases
  • Excellent long term durability
  • Thermoformable
  • Good flexibility and toughness
  • Low-Maintenance
  • FDA approved in certain grades
King ColorCore Specifications
Molecular Weight
0.062 lbs.
Density
58.1 - 60.2 lbs/ft3
Water Absorption
0.03% at 24 hours
Modulus of Elasticity:
Homopolymer
Copolymer

150ksi
60-145ksi
DSC Melting Point:
Homopolymer
Copolymer

275F
230 - 273F
Specific Heat @ 73?F
2.25 kJ/kg K
Hardness, Shore D
55 - 70
Coefficient of Friction
0.29
Auto-Ignition Temperature
790F
Elongation at Yield
10%
Tensile Modulus of Elasticity
900 N/mm2

*Values listed are typical and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.

Mostly for signage applications, ColorCore® withstands the harshest outdoor conditions.
HDPE COLORCORE - RED/WHITE/RED
Mostly for signage applications, ColorCore® withstands the harshest outdoor conditions.
HDPE COLORCORE - BLUE/WHITE/BLUE
Mostly for signage applications, ColorCore® withstands the harshest outdoor conditions.
HDPE COLORCORE<SUP>?</SUP> - GREEN/WHITE/GREEN
Mostly for signage applications, ColorCore® withstands the harshest outdoor conditions.
HDPE COLORCORE<SUP>?</SUP> - GREEN/TAN/GREEN
Mostly for signage applications, ColorCore® withstands the harshest outdoor conditions.
HDPE COLORCORE<SUP>?</SUP> - BLACK/YELLOW/BLACK

CALL (916) 679-5146 FOR MORE COLOR OPTIONS!
