HOME > ACETAL / DELRIN® UNFILLED

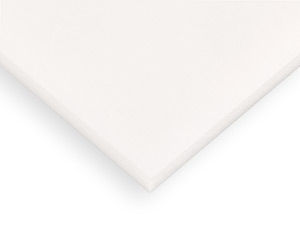

DELRIN® SHEET | NATURAL
5 stars based on 7 Review(s)
|Get Your Online Pricing:
Sanitizing Acrylic and Polycarbonate »
Tips for measuring & cut-to-size policy »
How To Measure and Cut-To-Size Policy [X]
Cut-To-Size Items are Non-Returnable!
As per our Shipping and Returns Policy, custom cuts and fabricated parts are non-returnable. If you need an over- or undersized item, note it under "Comments" during Checkout. Cut-to-size orders have an acceptable cut tolerance of 1/8" (0.125"), so clarify if the adjustment is to be made on the (+) or (-) side of the saw blade. Please review our full return and shipping policy here.
Measure Twice, Cut Once
Since custom cuts and fabricated parts are non-refundable, be very careful while measuring your dimensions. As each cut is nominal, even the slightest miscalculation could be costly.
How to Use a Measuring Tape
Extend your tape measure several inches to find the 1 and 2 inch markers. In between the inch markers you’ll find 16 equally spaced tick marks.
Measure by counting the increments beyond the nearest inch. As the increments decrease, so does the length of the mark. For example, 1/2" has a bigger mark than 1/4" which has a bigger mark than 1/8". The smallest mark follows at 1/16". Please be aware that some measuring tapes may have even smaller increments.
Features of a Measuring Tape: Sliding End Hook
The sliding end hook is designed for two different types of measurements. An outside measurement (where the hook of the tape hangs over an edge), requires the hook to slide out a bit to account for the thickness of the material. When making an inside measurement (where the hook will push up against a surface), the clip slides in, again, accounting for its thickness. The measuring tape self-adjusts to guarantee an accurate measurement (as far as the tape is concerned).
Sanitizing Acrylic and Polycarbonate Sheet [X]
Acrylic and Polycarbonate Sneeze Guards and like products require special care while cleaning and disinfecting. To maintain the optical clarity of sneeze guards and other acrylic or polycarbonate items, use an acrylic or polycarbonate safe cleaner like Novus Plastic Polish #1, Brillianize Plastic Cleaner, or a mild soap solution.
Please reference the following compatible cleaners when DISINFECTING acrylic and polycarbonate items. The use of commonly available commercial alcohol or ammonia-based disinfectants may cause crazing and damage.
Compatible Polycarbonate Disinfectants:
• sBioMed Steriplex SD
• Safetec Surface Wipes
• Contec Healthcare Perodox RTU
• Contec Healthcare PS-911 EB Prostat Sterile Wipes
Compatible Acrylic Disinfectants:
• Pharmacy Grade Hydrogen Peroxide
• Household Bleach
• Isopropyl Alcohol (Water Diluted to 30% Strength)
[Download as a PDF]
|As low as $12/month with |
Interstate Plastics is proud to carry Delrin®, an industry-trusted name for acetal homopolymer. Delrin® is a tough, machinable thermoplastic with a high modulus of elasticity, high strength, good rigidity, dimensional stability, and resistances to moisture, chemicals and solvents. It has desirable toughness properties, performing well at extreme temperatures and under fatigue endurance. A low coefficient of friction (COF) alongside excellent wear properties, especially in wet or moist environments, makes it one of the most widely used engineering thermoplastics on the market today.
Low Moisture Absorption
Acetal plastics are ideal when working in wet environments as they absorb minimal amounts of moisture and, with a high level of heat resistance, can be heated or cooled without affecting form or dimensionality. Delrin® can be used in hot water applications up to 140°F without any hydrolysis effect. Unlike other materials that may erode form acidic water, hard water does not harm Delrin®.
High Strength & Stiffness
Delrin® is highly crystalline and due to its rigidity, resilience, toughness and strength, does not easily become brittle even with long-term exposure to unfavorable conditions including extremely high temperatures.
Easy to Machine
Delrin® is available in extruded rod and sheets for machined parts that are readily machined with standard machining practices. Any machining tool that is capable of high speed without vibration can be used.
Centerline porosity is an inherent characteristic specific to Delrin® and occurs due to gassing during manufacturing. Centerline porosity can be found at the center or surface of all homopolymer extrusions. The porosity can cause problems in machining or moisture permeation through materials. Centerline porosity can also affect Delrin® products because it compromises structural integrity, presents potential routes for leakage of gas and liquids, and provides areas where bacteria can grow in food processing applications.
[PDF Spec Sheet]
- High strength and stiffness
- Excellent dimensional stability
- High crystallinity
- High tensile- and impact strength
- Excellent creep resistance
- Centerline porosity
- Consistent properties in wet or moist environments
- Very low moisture absorption
- Excellent electrical properties
- Easy to machine to close tolerances
- FDA and USDA compliant grades available
NEED A SAMPLE?
Thermoplastics Material Sample Pack
Machinable Plastics Material Sample Pack
Tensile Strength Material Sample Pack
Friction Resistance Material Sample Pack
WARNING: This product can expose you to chemicals including Formaldehyde, CAS 50-00, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov .
Warning: This product may have sharp edges and points. Contact may result in injury. Handle with care.
Disclaimer: Interstate Plastics makes no representations about any of its products that are modified in any way after they leave its possession, nor do its representations apply when any of its products are improperly used or stored.
Each customer of Interstate Plastics bears full responsibility for making its own determination as to the suitability of each material, product, recommendation or advice provided by Interstate Plastics. Each customer of Interstate Plastics must identify and perform all tests and analyses necessary to assure that its finished parts incorporating materials from Interstate Plastics will be safe and suitable for use under end-use conditions.
- Auto mechanical: valves, bearings, gears, sliding and guiding elements, housing parts, springs, chains, screws, nuts, fan wheels, pump parts, valve bodies, cams, clips, lugs, conveyor links, and watch gears
- Electric Engineering: insulators, bobbins, connectors and parts for electronic devices such as television and telephones
- Plumbing: valves, valve stems pumps, impellers, faucet cartridges, shower heads and various fittings
- Medical Grade Acetal (such as Celcon® M25): surgical instruments, size trials
- Consumer: hardware tools, locks and hinges, paintball accessories, airsoft guns, K'Nex® pieces, doll arms and legs, clothing zippers, audio and video cassette parts, fully automatic coffee brewers, knife handles, garden sprayers, mechanical pens and pencils, aerosols and butane lighter bodies
- FDA Approved: milk pumps, coffee spigots, filter housings and food conveyors
|2015-09-24||Top quality product A+|
|2014-05-16||Good, on time, friendly, they know a lot about plastic and certifications. 5 star|
|2014-04-11||Really great tensile and impact strength, we choose Delrin over regular Acetal sheet. There is also a noticeable difference in its resistance to creep.|
|2014-03-05||Interstate Plastics was nice enough to walk me through the differences of homopolymer delrin versus copolymer acetal. When you search online you wont find much for differences, but there are a few worth noting, mostly chemical resistance and tensile and impact strength. Also copolymer may have some better chemical resistance to SOME chemicals like solvents, but the homopolymer sheet has better resistance to other chemicals, in this case we were looking at hydrochloric acid. (A 36% aqueous solution 36%) - All around a good experience with knowledgeable sales people, or sorry they call themselves plastics experts. Either way, great job guys. |
|2013-11-14||Acetal machines really well. It will not gum up like UHMW during lathing. I highly recommend it this material for bearings and gears.|
|2013-06-27||I needed this but in a different color besides black/ white, so I got the white and dyed it using RIT fabric dye that you can pick up at most craft stores. Looks amazing|
|2013-01-10||Just started selling earrings that have dangling guitar picks. Love what I've gotten here so far, just wish you guys had pink and purple.|
|Write Your Own Review|
DELRIN® SHEET | NATURAL Questions?
