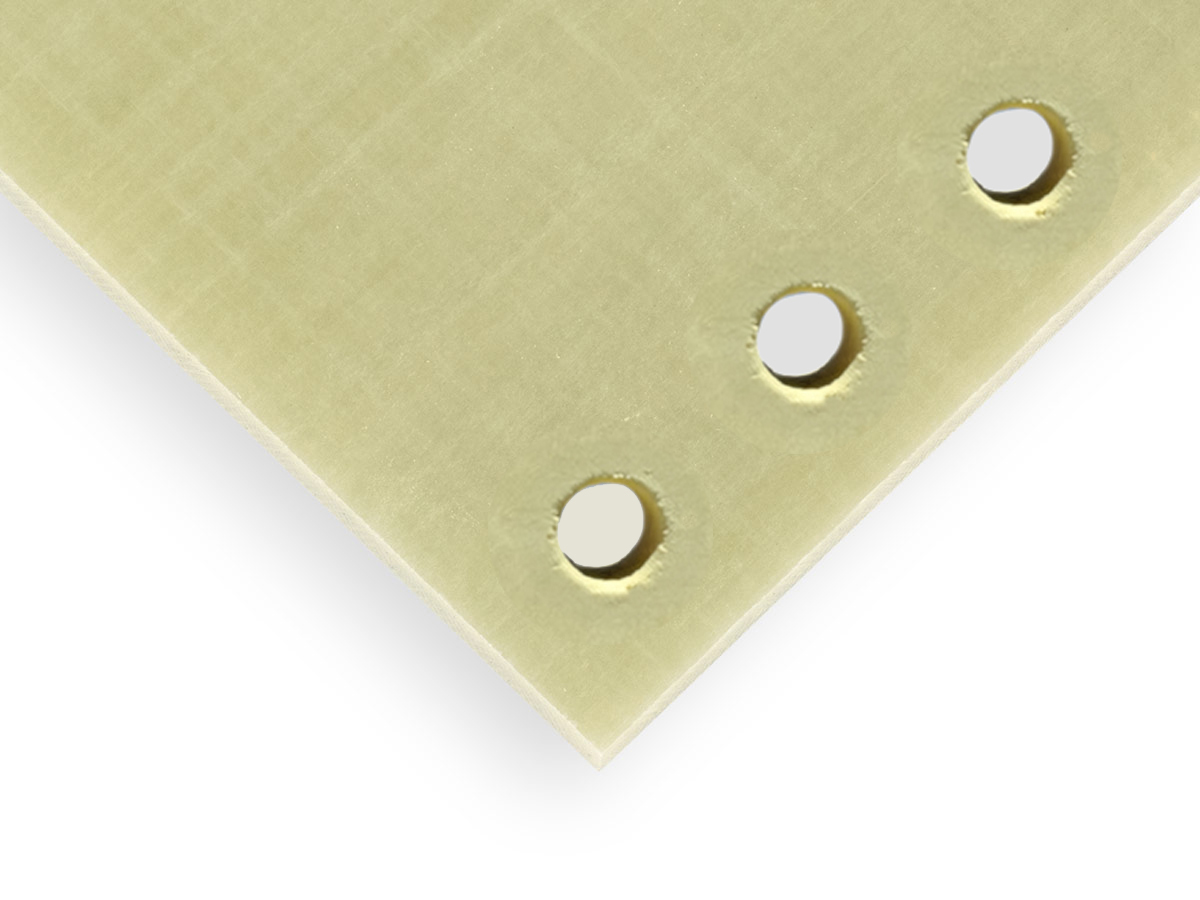

Glass-Epoxy Composite Laminate | NorPLY 1002 Cut-to-Size

NorPLY 1002 epoxy composite is used to make components such as vibratory springs and shocks or struts for fatigue-intensive applications.


Get Your Online Pricing: Sanitizing Acrylic and Polycarbonate »
Tips for measuring & cut-to-size policy »

How To Measure and Cut-To-Size Policy [X]


Cut-To-Size Items are Non-Returnable!

As per our Shipping and Returns Policy, custom cuts and fabricated parts are non-returnable. If you need an over- or undersized item, note it under "Comments" during Checkout. Cut-to-size orders have an acceptable cut tolerance of 1/8" (0.125"), so clarify if the adjustment is to be made on the (+) or (-) side of the saw blade. Please review our full return and shipping policy here.

Measure Twice, Cut Once

Since custom cuts and fabricated parts are non-refundable, be very careful while measuring your dimensions. As each cut is nominal, even the slightest miscalculation could be costly.

How to Use a Measuring Tape

Extend your tape measure several inches to find the 1 and 2 inch markers. In between the inch markers you’ll find 16 equally spaced tick marks.

Measure by counting the increments beyond the nearest inch. As the increments decrease, so does the length of the mark. For example, 1/2" has a bigger mark than 1/4" which has a bigger mark than 1/8". The smallest mark follows at 1/16". Please be aware that some measuring tapes may have even smaller increments.

Features of a Measuring Tape: Sliding End Hook

The sliding end hook is designed for two different types of measurements. An outside measurement (where the hook of the tape hangs over an edge), requires the hook to slide out a bit to account for the thickness of the material. When making an inside measurement (where the hook will push up against a surface), the clip slides in, again, accounting for its thickness. The measuring tape self-adjusts to guarantee an accurate measurement (as far as the tape is concerned).

Sanitizing Acrylic and Polycarbonate Sheet [X]


Acrylic and Polycarbonate Sneeze Guards and like products require special care while cleaning and disinfecting. To maintain the optical clarity of sneeze guards and other acrylic or polycarbonate items, use an acrylic or polycarbonate safe cleaner like Novus Plastic Polish #1, Brillianize Plastic Cleaner, or a mild soap solution.

Please reference the following compatible cleaners when DISINFECTING acrylic and polycarbonate items. The use of commonly available commercial alcohol or ammonia-based disinfectants may cause crazing and damage.

Compatible Polycarbonate Disinfectants:

• sBioMed Steriplex SD
• Safetec Surface Wipes
• Contec Healthcare Perodox RTU
• Contec Healthcare PS-911 EB Prostat Sterile Wipes

Compatible Acrylic Disinfectants:

• Pharmacy Grade Hydrogen Peroxide
• Household Bleach
• Isopropyl Alcohol (Water Diluted to 30% Strength)

[Download as a PDF]


Width

inches
Length

inches
Thickness:

inches
Quantity:


Price per Sheet: $2,188.33

Total Price: $2,188.33
Options:
Rounded/Chamfered Edges (45 degrees): ($40)
Rounded Corners (in.):
#Holes Per Sheet ($2/hole) - Please upload your drawing:
Available hole sizes: 1/8”, 5/32”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, ½”, 9/16”, 5/8”, 11/16”, ¾”, 13/16”, 7/8”, 15/16”, and 1”
.195 in. sheets are FP-513.

As low as $202/month with Credit Key

Overview Specs & Uses Reviews Inquiry
COMEMK SH - Overview

NorPLY 1002 is a cured glass epoxy composite material with excellent fatigue resistance. Designed for higher performance and longer application life, NorPLY outlasts competing composite materials and is a superior replacement for steel in fatigue intensive components such as vibratory springs. NorPLY may provide anywhere from 10% to 60% component weight reduction when replacing steel parts and offers greater energy storage capacity than even 1060 spring steel.

This material is suitable for harsh environments and has high dimensional stability in cold, hot, wet, and dry conditions. It resists both chemicals and corrosion and cannot rust. NorPLY was previously known by the brand names SpringPly, SciPly, ScotchPLY, and CyPLY®.

NorPLY uses continuous E-glass filaments in a unique non-woven parallel filament composition that helps minimize the risk of fracturing during machining and reduces filament stress that may shorten fatigue life in reinforced plastic materials.

NorPLY FP-513, 517, 518, 521, and 525 are offered in spring ply, unidirectional orientation.

NorPLY 1002 is also available in full sheet sizes.



Features

NorPLY Product Information Brochure [PDF]

  • Excellent fatigue life
  • High impact strength
  • Resists chemicals, corrosion
  • Superior energy storage capacity compared to 1060 spring steel
  • Anywhere from 10% to 60% component weight reduction vs. steel
  • High strength-to-weight performance
  • Reduced downtime in harsh environments
  • Allows for increased design options, including springs and rail joints
  • High strain capability
  • Low notch sensitivity
  • Resistant to cleaning fluids


WARNING: Sharp Edges! Handle with care.
Warning: This product may have sharp edges and points. Contact may result in injury. Handle with care.

Disclaimer: Interstate Plastics makes no representations about any of its products that are modified in any way after they leave its possession, nor do its representations apply when any of its products are improperly used or stored. Each customer of Interstate Plastics bears full responsibility for making its own determination as to the suitability of each material, product, recommendation or advice provided by Interstate Plastics. Each customer of Interstate Plastics must identify and perform all tests and analyses necessary to assure that its finished parts incorporating materials from Interstate Plastics will be safe and suitable for use under end-use conditions.
