Propylux® HS Rod

Heat Stabilized Polypropylene Rod



  4 stars based on 9 Review(s)
Get Your Online Pricing: Tips for measuring »

How To Measure and Cut-To-Size Policy [X]


Cut-To-Size Items are Non-Returnable!

As per our Shipping and Returns Policy, custom cuts and fabricated parts are non-returnable. If you need an over- or undersized item, note it under "Comments" during Checkout. Cut-to-size orders have an acceptable cut tolerance of 1/8" (0.125"), so clarify if the adjustment is to be made on the (+) or (-) side of the saw blade. Please review our full return and shipping policy here.

Measure Twice, Cut Once

Since custom cuts and fabricated parts are non-refundable, be very careful while measuring your dimensions. As each cut is nominal, even the slightest miscalculation could be costly.

How to Use a Measuring Tape

Extend your tape measure several inches to find the 1 and 2 inch markers. In between the inch markers you’ll find 16 equally spaced tick marks.

Measure by counting the increments beyond the nearest inch. As the increments decrease, so does the length of the mark. For example, 1/2" has a bigger mark than 1/4" which has a bigger mark than 1/8". The smallest mark follows at 1/16". Please be aware that some measuring tapes may have even smaller increments.

Features of a Measuring Tape: Sliding End Hook

The sliding end hook is designed for two different types of measurements. An outside measurement (where the hook of the tape hangs over an edge), requires the hook to slide out a bit to account for the thickness of the material. When making an inside measurement (where the hook will push up against a surface), the clip slides in, again, accounting for its thickness. The measuring tape self-adjusts to guarantee an accurate measurement (as far as the tape is concerned).


Please Call us at (877) 695-2594 for pricing.
PROPYLUX® HS
As low as $10/month with

Overview Specs & Uses Reviews Inquiry
PROPROPYLUXHS - Overview

Propylux® HS rods, exclusively produced by Westlake Plastics, are the material of choice for orthopedic applications due to characteristics including biocompatibility, dimensional stability and impressive chemical resistances.

Propylux® HS rods offer superior dimensional stability when processed through repeated 134-C autoclaving cycles. The product also exhibits exceptional chemical resistance to cleaning and disinfecting agents and offers a good balance of strength, ductility and overall toughness. These features make Propylux® HS well suited for use in applications including trial heads and cups for hip implants, knee provisional trials and impactor applications.

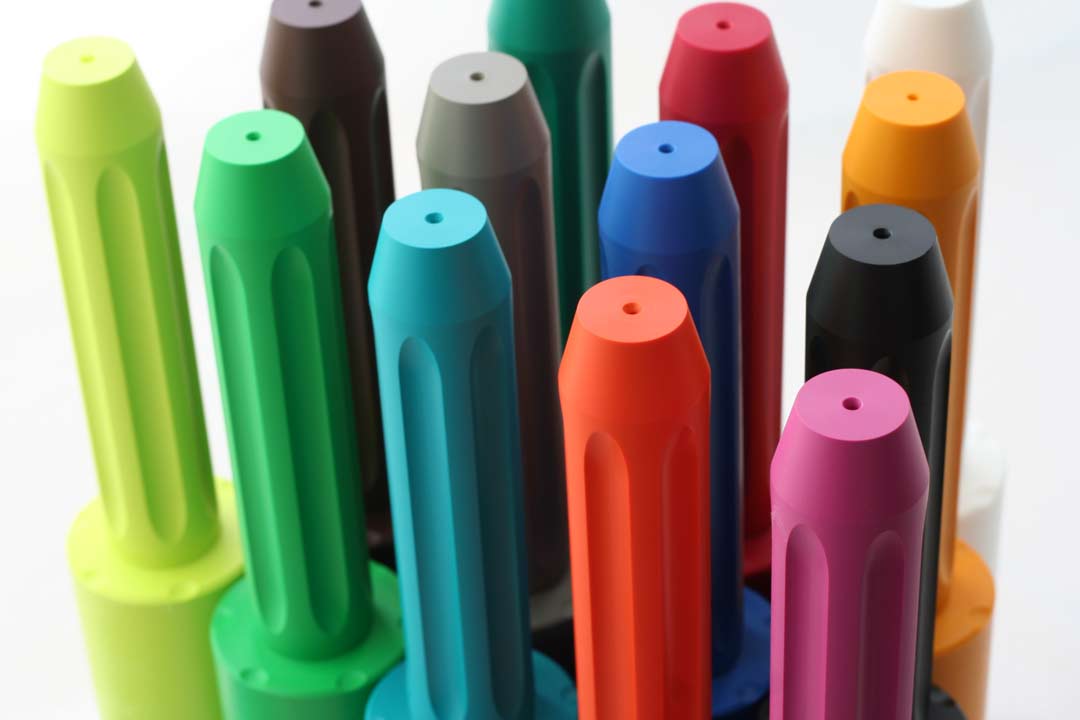

The Propylux® HS product line consists of 15 colors and 13 diameters. All colored materials are made with FDA compliant ingredients and the shaped rods have been tested and comply with key parts of ISO 10993.



Features
  • Dimensionally Stable
  • Chemically Resistant
  • ISO 10993 & FDA Compliant
  • Sterilizable in Autoclave
  • Laser Markable
  • Easy to Machine
Physical Characteristics:
Density D 1505 0.90 g/cm3 0.90 g/cm3
Water Absorption D 570 0.025% 0.025%

?

Mechanical Characteristics:
Tensile StrengthD 638??
Yield?34.7 MPa5.04 kpsi
Break?27.3 MPa3.96 kpsi
Tensile ElongationD 638??
Yield?4.6%4.6%
Break?20% - 60%20% - 60%
Tensile ModulusD 63820.1 MPa292 kpsi
Izod Impact (0.50")D 256??
Notched?0.48 J/cm0.90 ft-lbs/in
Un-notched?NBNB
Hardness (R Scale)D 7859292

?

Thermal Characteristics:
Heat Deflection Temp @ 66 psi D 648 150 302
Heat Deflection Temp @ 264 psi 696 71 160


Material Warnings

Material Warning  WARNING: This product can expose you to chemicals including Ethylene Oxide, CAS 75-21-8, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

WARNING: This product can expose you to chemicals including Ethylene Oxide, CAS 75-21, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov .

WARNING: SHARP EDGES. Handle with care.
Warning: This product may have sharp edges and points. Contact may result in injury. Handle with care.

Disclaimer: Interstate Plastics makes no representations about any of its products that are modified in any way after they leave its possession, nor do its representations apply when any of its products are improperly used or stored. Each customer of Interstate Plastics bears full responsibility for making its own determination as to the suitability of each material, product, recommendation or advice provided by Interstate Plastics. Each customer of Interstate Plastics must identify and perform all tests and analyses necessary to assure that its finished parts incorporating materials from Interstate Plastics will be safe and suitable for use under end-use conditions.
