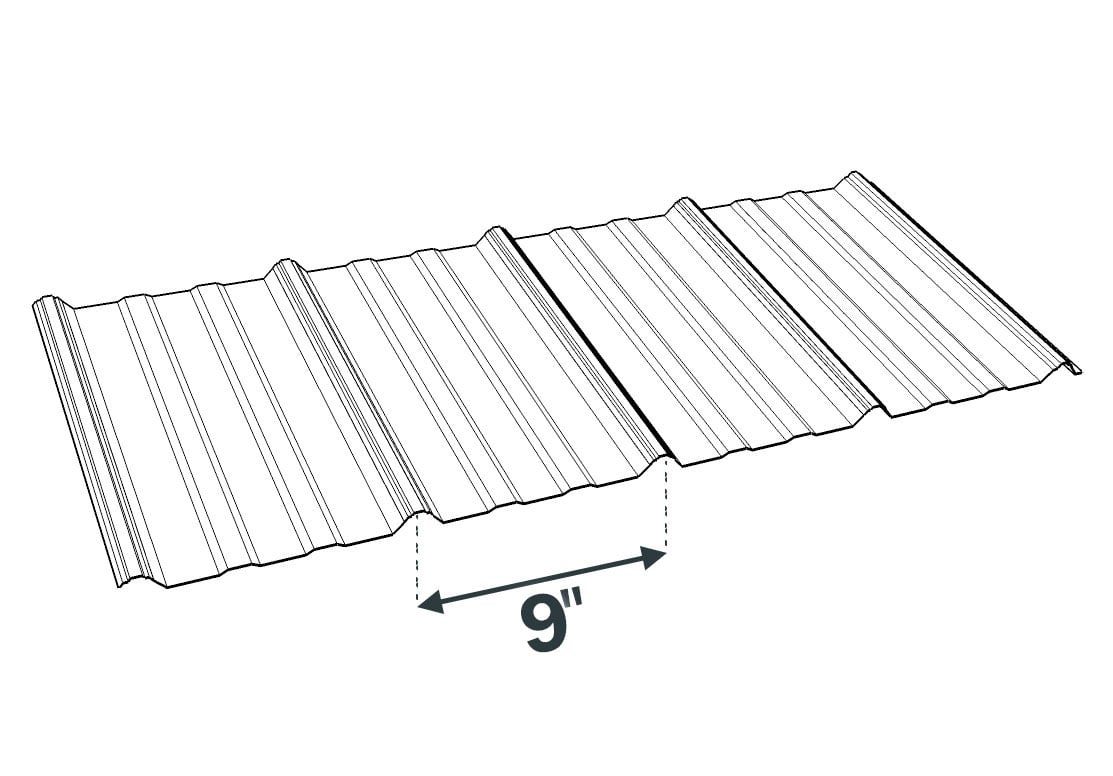

SUNSKY 9 WHITE OPAL CORRUGATED POLYCARBONATE SHEET
Corrugated Polycarbonate Rooflite and Sidelite Panels
|Get Your Online Pricing:
Sanitizing Acrylic and Polycarbonate »
Tips for measuring & cut-to-size policy »
How To Measure and Cut-To-Size Policy [X]
Cut-To-Size Items are Non-Returnable!
As per our Shipping and Returns Policy, custom cuts and fabricated parts are non-returnable. If you need an over- or undersized item, note it under "Comments" during Checkout. Cut-to-size orders have an acceptable cut tolerance of 1/8" (0.125"), so clarify if the adjustment is to be made on the (+) or (-) side of the saw blade. Please review our full return and shipping policy here.
Measure Twice, Cut Once
Since custom cuts and fabricated parts are non-refundable, be very careful while measuring your dimensions. As each cut is nominal, even the slightest miscalculation could be costly.
How to Use a Measuring Tape
Extend your tape measure several inches to find the 1 and 2 inch markers. In between the inch markers you’ll find 16 equally spaced tick marks.
Measure by counting the increments beyond the nearest inch. As the increments decrease, so does the length of the mark. For example, 1/2" has a bigger mark than 1/4" which has a bigger mark than 1/8". The smallest mark follows at 1/16". Please be aware that some measuring tapes may have even smaller increments.
Features of a Measuring Tape: Sliding End Hook
The sliding end hook is designed for two different types of measurements. An outside measurement (where the hook of the tape hangs over an edge), requires the hook to slide out a bit to account for the thickness of the material. When making an inside measurement (where the hook will push up against a surface), the clip slides in, again, accounting for its thickness. The measuring tape self-adjusts to guarantee an accurate measurement (as far as the tape is concerned).
Sanitizing Acrylic and Polycarbonate Sheet [X]
Acrylic and Polycarbonate Sneeze Guards and like products require special care while cleaning and disinfecting. To maintain the optical clarity of sneeze guards and other acrylic or polycarbonate items, use an acrylic or polycarbonate safe cleaner like Novus Plastic Polish #1, Brillianize Plastic Cleaner, or a mild soap solution.
Please reference the following compatible cleaners when DISINFECTING acrylic and polycarbonate items. The use of commonly available commercial alcohol or ammonia-based disinfectants may cause crazing and damage.
Compatible Polycarbonate Disinfectants:
• sBioMed Steriplex SD
• Safetec Surface Wipes
• Contec Healthcare Perodox RTU
• Contec Healthcare PS-911 EB Prostat Sterile Wipes
Compatible Acrylic Disinfectants:
• Pharmacy Grade Hydrogen Peroxide
• Household Bleach
• Isopropyl Alcohol (Water Diluted to 30% Strength)
[Download as a PDF]
|As low as $7/month with |
Due to the pandemic, this material is 17-18 weeks out for delivery. We are only taking pre-orders at this time.
SunSky corrugated polycarbonate turns night into brilliant daylight, transforming factories, assembly lines, agricultural buildings, and livestock shelters into well-lit areas that reap the benefits of natural sunlight.
SunSky is compatible with popular metal panel profiles, making it a perfect choice for seamless skylights, roof lights, and sidelights. Durable SunSky has had no mechanical failures or cracks at the end of any test to measure ultimate load when tested to ICBO Evaluation Service Acceptance Criteria, AC 16 Plastic Skylights.
This high-performance glazing material stands up to punishing exterior applications, offering many advantages over traditional fiberglass corrugated panels: up to 20 times greater impact resistance, the highest light transmission rates, the lowest yellowing index, the highest load rating, and the highest resistance to wind uplift-outstanding properties confirmed in accredited laboratory testing.
[SunSky Profile Sheet PDF]
- Matches virtually any profile
- Virtually unbreakable
- Self extinguishing
- Resistant to yellowing
- Retains optical clarity with high light transmission
- Can handle extreme climates (-40°F to 250°F)
- Easily and safely installed
- ICC-ES Approved
Radiation Filtering: SunSky panels form a complete shield against harmful ultraviolet rays, while admitting most of the visible light, essential to healthy livestock and work environments. By completely blocking the far infrared rays, SunSky prevents heat loss at night. SunSky blocks both UV-A and UV-B, which prevents damage to items located underneath the panels due to UV exposure.
Thermal Insulation & Light Transmission: SunSky's heat conductivity is lower than fiberglass (FRP) sheets, which can result in considerable heating cost savings, compared to fiberglass.
|SunSky Color ||Light Transmission ||Solar Heat Gain |
|Shading Coefficient (SC) ||Diffusion |
|Clear ||90% ||0.90 ||1.04 ||n/a |
|White Opal ||45% ||0.51 ||0.59 ||100% |
|Soft White ||85% ||0.85 ||0.98 ||100% |
Superior Weathering: With a built-in co-extruded UV blocking layer, SunSky maintains its light transmission and physical properties while being resistant to yellowing. Arizona climatic exposure tests and accelerated QUV tests indicate a significant advantage of SunSky over competitive products such fiberglass.
WARNING: This product can expose you to chemicals including Bisphenol A, CAS 80-05-7 , which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Warning: This product may have sharp edges and points. Contact may result in injury. Handle with care.
Disclaimer: Interstate Plastics makes no representations about any of its products that are modified in any way after they leave its possession, nor do its representations apply when any of its products are improperly used or stored.
Each customer of Interstate Plastics bears full responsibility for making its own determination as to the suitability of each material, product, recommendation or advice provided by Interstate Plastics. Each customer of Interstate Plastics must identify and perform all tests and analyses necessary to assure that its finished parts incorporating materials from Interstate Plastics will be safe and suitable for use under end-use conditions.
