Turcite A | Turcite Kit | Rod

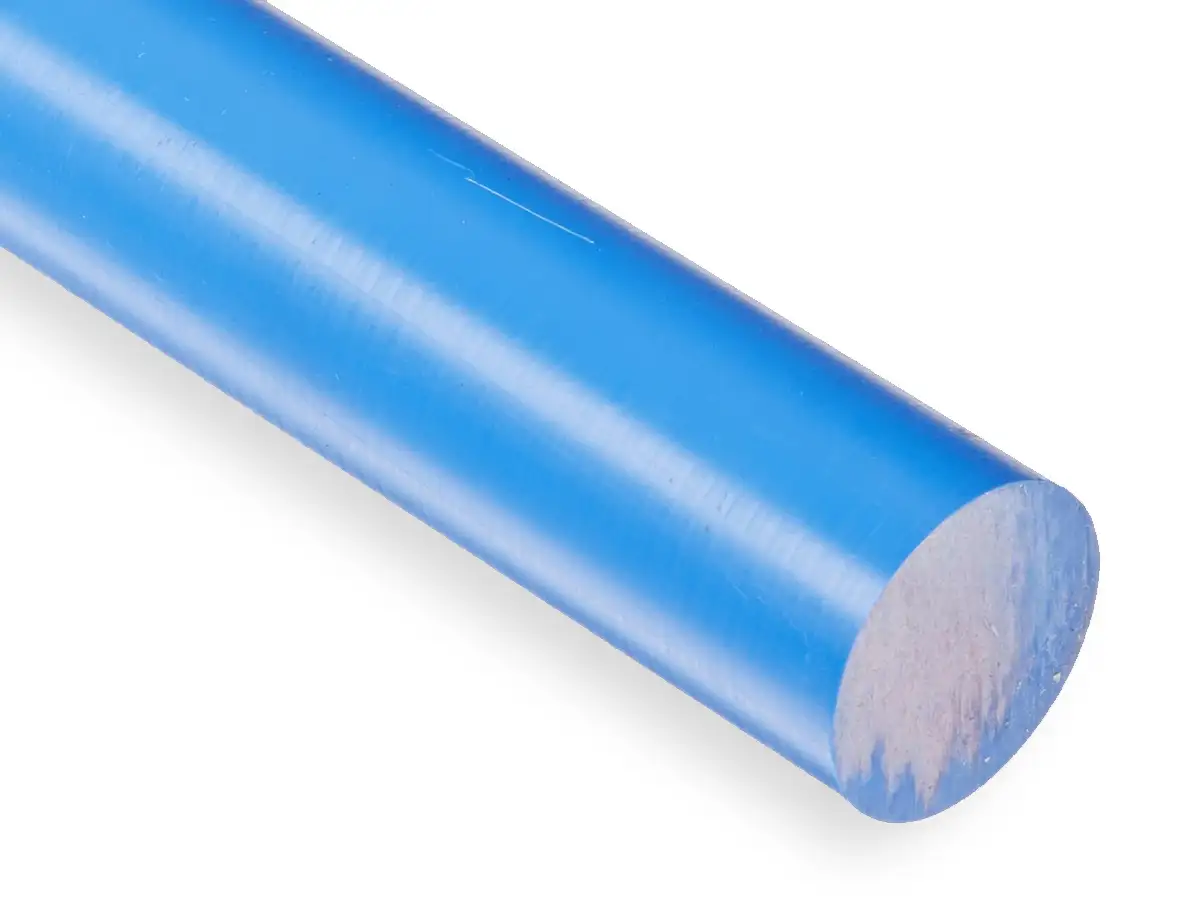

Turcite A is a self-lubricating engineered thermoplastic turcite kit.



  4 stars based on 7 Review(s)
Get Your Online Pricing: Tips for measuring »

How To Measure and Cut-To-Size Policy [X]


Cut-To-Size Items are Non-Returnable!

As per our Shipping and Returns Policy, custom cuts and fabricated parts are non-returnable. If you need an over- or undersized item, note it under "Comments" during Checkout. Cut-to-size orders have an acceptable cut tolerance of 1/8" (0.125"), so clarify if the adjustment is to be made on the (+) or (-) side of the saw blade. Please review our full return and shipping policy here.

Measure Twice, Cut Once

Since custom cuts and fabricated parts are non-refundable, be very careful while measuring your dimensions. As each cut is nominal, even the slightest miscalculation could be costly.

How to Use a Measuring Tape

Extend your tape measure several inches to find the 1 and 2 inch markers. In between the inch markers you’ll find 16 equally spaced tick marks.

Measure by counting the increments beyond the nearest inch. As the increments decrease, so does the length of the mark. For example, 1/2" has a bigger mark than 1/4" which has a bigger mark than 1/8". The smallest mark follows at 1/16". Please be aware that some measuring tapes may have even smaller increments.

Features of a Measuring Tape: Sliding End Hook

The sliding end hook is designed for two different types of measurements. An outside measurement (where the hook of the tape hangs over an edge), requires the hook to slide out a bit to account for the thickness of the material. When making an inside measurement (where the hook will push up against a surface), the clip slides in, again, accounting for its thickness. The measuring tape self-adjusts to guarantee an accurate measurement (as far as the tape is concerned).

Feet:
Choose cut option:



Total Price: $4.90


As low as $0.45/month with

Overview Specs & Uses Reviews Inquiry
TURA - Overview

Turcite® A is an internally lubricated, acetal-based thermoplastic. It is available in turquoise and suited for moderate loads and speeds. Turcite® A is ideal for applications with high wear and friction requirements. It has minimal hygroscopic characteristics and low thermal expansion properties, offering high structural stability. It performs well under vibratory and dynamic loading and is easily machined. Turcite® A also offers outstanding service life, continuous maximum temperatures of 180?F and is more wear resistant than its counterpart, Turcite® X.

Long Service Life
Due to Turcite® A's low water absorption, its applications retain their integrity throughout their life span, making it so that you'll spend less time and money replacing parts and products.

Low Coefficient of Friction
Turcite® A offers an extremely low Coefficient of Friction (COF), due in part to its specialized self-lubricating formula. The sliding advantage produced from the dry lubricant generates a smoother, quieter operation without the need of extra product. It also ensures improved sliding behavior by offering a near-zero level of slip-stick and by eliminating backsliding issues that occur in parts that experience high-pressure conditions.

Color
Turcite® A is offered in turquoise, offering a look that is visually attractive and distinct.



Features

  • Long service life
  • No slip-stick
  • Self-lubricating
  • Tear, wear and chemical resistant
  • Displays minimal hygroscopic characteristics
  • All rods are oven annealed
  • Made from copolymer Acetal which reduces material voids
  • Unique coloring makes it easily identifiable



Material Warnings

Material Warning  WARNING: This product can expose you to chemicals including Formaldehyde, CAS 50-00-0, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

WARNING: SHARP EDGES. Handle with care.
Warning: This product may have sharp edges and points. Contact may result in injury. Handle with care.
