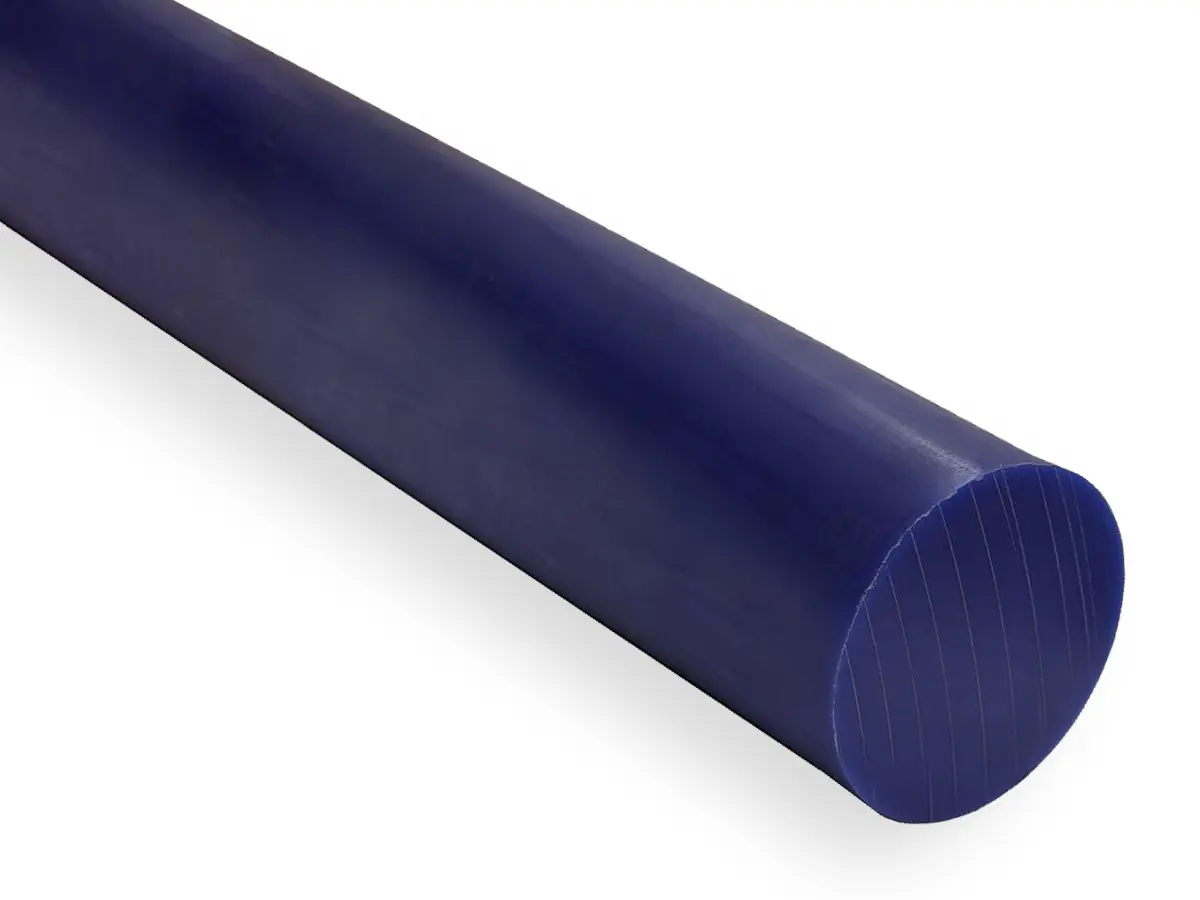

UHMW ROD | BLUE COLORED UHMW RODS (FDA COMPLIANT)
Virgin Ultra High Molecular Weight Polyethylene Blue Rods
|Get Your Online Pricing:
Tips for measuring »
How To Measure and Cut-To-Size Policy [X]
Cut-To-Size Items are Non-Returnable!
As per our Shipping and Returns Policy, custom cuts and fabricated parts are non-returnable. If you need an over- or undersized item, note it under "Comments" during Checkout. Cut-to-size orders have an acceptable cut tolerance of 1/8" (0.125"), so clarify if the adjustment is to be made on the (+) or (-) side of the saw blade. Please review our full return and shipping policy here.
Measure Twice, Cut Once
Since custom cuts and fabricated parts are non-refundable, be very careful while measuring your dimensions. As each cut is nominal, even the slightest miscalculation could be costly.
How to Use a Measuring Tape
Extend your tape measure several inches to find the 1 and 2 inch markers. In between the inch markers you’ll find 16 equally spaced tick marks.
Measure by counting the increments beyond the nearest inch. As the increments decrease, so does the length of the mark. For example, 1/2" has a bigger mark than 1/4" which has a bigger mark than 1/8". The smallest mark follows at 1/16". Please be aware that some measuring tapes may have even smaller increments.
Features of a Measuring Tape: Sliding End Hook
The sliding end hook is designed for two different types of measurements. An outside measurement (where the hook of the tape hangs over an edge), requires the hook to slide out a bit to account for the thickness of the material. When making an inside measurement (where the hook will push up against a surface), the clip slides in, again, accounting for its thickness. The measuring tape self-adjusts to guarantee an accurate measurement (as far as the tape is concerned).
UHMW (Ultra High Molecular Weight Polyethylene) provided by Interstate Plastics is a common machinable plastic known for durability, versatility and cost-effectiveness as well as abrasion, impact and chemical resistances. FDA compliant blue virgin UHMW is used in applications where high levels of friction are likely to arise, including conveyor guard rails, augers and wear strips, belt scrapers, chain guides, and idler rollers. Due to an extremely low coefficient of friction, its inherent lubricity minimizes heat-generating friction that tends to gradually destroy steel parts, and ensures smooth, noiseless operation. UHMW is also known by brand names including IPX®, Polystone®, Tecafine®, Dyneema®, Tivar®, Polysteel®, GUR®, Utec® and Mipelon®.
Known for an extremely high molecular weight, UHMW features an unsurpassed combination of slickness, toughness and chemical resistance. UHMW's molecular weight ranges from 3.1 million to 100 million grams per mole, with an abrasion resistance that continues to improve as molecular weight increases. Colored UHMW rods are easy to machine with common woodworking tools, making them extremely cost effective, and outperform metal in many applications. High durability, low friction and wear resistance are key reasons why UHMW is the material of choice for many applications. UHMW can be machined into virtually anything from small gears and bearings to huge sprockets.
[PDF Spec Sheet]
- Odorless, tasteless and nontoxic
- Highly resistant to corrosive chemicals (except oxidizing acids)
- Extremely low moisture absorption
- Very low coefficient of friction
- Highly resistant to wear and abrasion
- Easy to fabricate and machine with common shop and woodworking tools
- Reduced maintenance costs and energy consumption
- Extends equipment life
- FDA compliant
