HOME > SAMPLE PACKS Impact Strength Material Sample Pack
ABS, Noryl, Polycarbonate, UHMW
As low as $9/month with  |
|
|
|

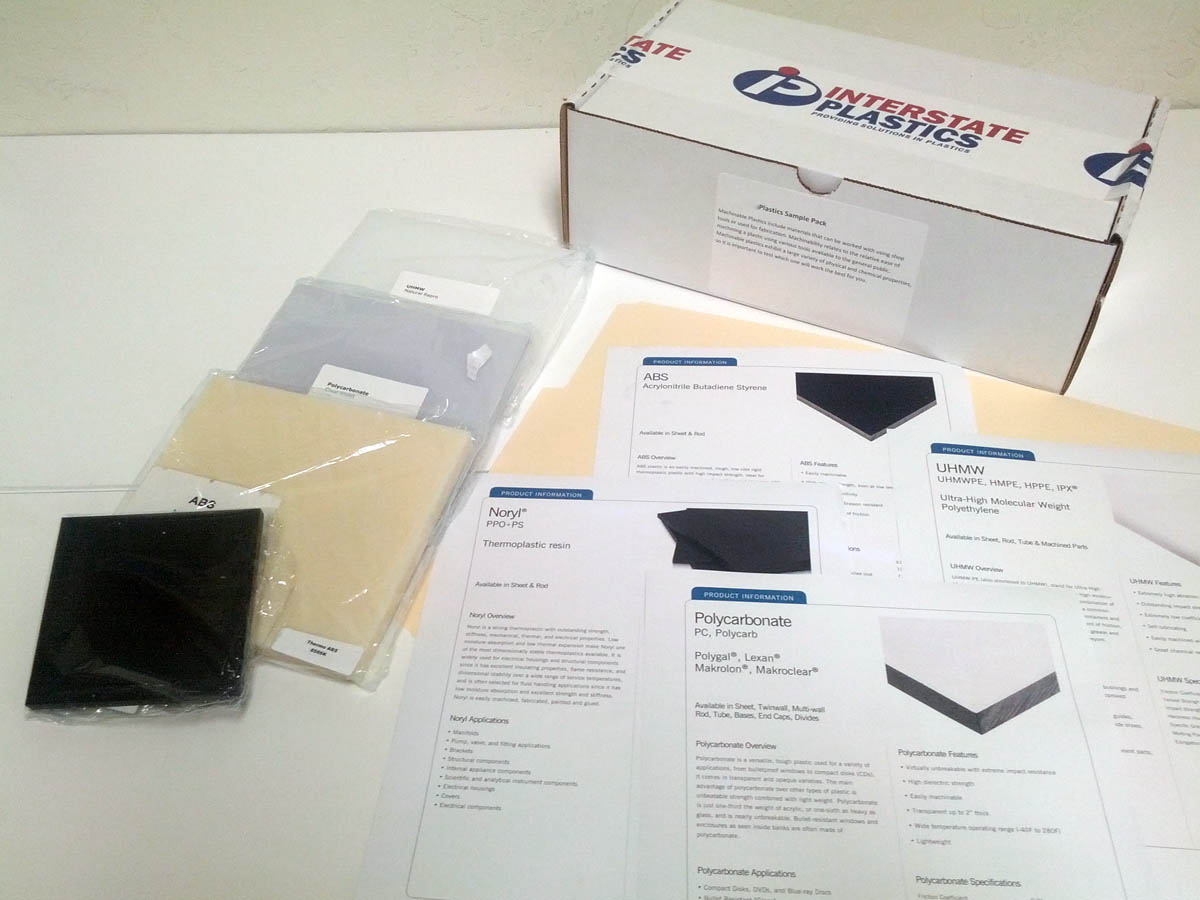

This sample pack includes a 6x6" sample of ABS, Noryl, Polycarbonate, and UHMW.
The Impact Strength Resistance Pack features four high impact performance plastics. Impact strength describes a plastic's behavior under impact and relates to how resistant from breaking and cracking a material is, when experiencing a sharp, fast, blunt, and/or hard impact.
A high impact resistance is important in many functional, moving and safety parts to ensure fracture behavior will not occur under extreme everyday operational conditions where the material is being used. Under impact stress, the mechanical energy absorbed by the plastic is transferred from the hard, stiff crystallites into the soft amorphous regions. If their energy absorption capacity is not enough, brittle fracture occurs.
Brittle fracture can be prevented by incorporating impact modifiers, such as elastomers, which are blended into the base material. Under impact stress, the elastomeric regions will absorb additional energy and prevent fracture. The correct impact resistant plastic for your project will vary based on many factors (temperature, humidity, interacting materials, etc.), and there is no material that will outperform any other for all applications.
Material Warnings
 WARNING: This product can expose you to chemicals including Acrylonitrile, CAS 107-13-1, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
 WARNING: This product can expose you to chemicals including Styrene, CAS 100-42-5, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals including Carbon Black, CAS 1333-86-5, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals including Toluene, CAS 108-88-3, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Suitability: We take pride in the quality of our materials as they leave our facility. However, because every project is unique, we cannot account for how materials are modified, stored, or used after delivery. Please perform the necessary tests to ensure this material is right for your specific application and end-use conditions.
EAIMPACTSTRENTHPACK
|
|
ABS
ABS plastic is an easily machined, tough, low cost rigid thermoplastic plastic with high impact strength, ideal for turning, drilling, milling, sawing, die-cutting, and shearing. ABS plastics provide a balanced combination of mechanical toughness, wide temperature range, good dimensional stability, chemical resistance, electrical insulating properties, and ease of fabrication. ABS applications are extremely broad, falling between commodity plastics and the engineering resins. ABS fills the property requirement for many parts at a reasonable price. ABS has an approximate Impact Strength (Notched Izod at 73°F) of 6.3 ft-lbs/in. Noryl
Noryl is a strong thermoplastic with outstanding strength, stiffness, mechanical, thermal, and electrical properties. Low moisture absorption and low thermal expansion make Noryl one of the most dimensionally stable thermoplastics available. It is widely used for electrical housings and structural components since it has excellent insulating properties, flame resistance, and dimensional stability over a wide range of service temperatures, and is often selected for fluid handling applications since it has low moisture absorption and excellent strength and stiffness. Noryl is easily machined, fabricated, painted and glued. Noryl has an approximate Impact Strength (Notched Izod at 73°F) of 3.5 - 5.0 ft-lbs/in. Polycarbonate
Polycarbonate is a versatile, tough plastic used for a variety of applications, from bulletproof windows to compact disks (CDs). It comes in transparent and opaque varieties. The main advantage of polycarbonate over other types of plastic is unbeatable strength combined with light weight. Polycarbonate is much lighter than glass, and is nearly unbreakable. Bulletproof windows and enclosures as seen inside banks are often made of polycarbonate. Polycarbonate has an approximate Impact Strength (Notched Izod at 73°F) of 13 - 14 ft-lbs/in. UHMW
UHMW-PE (also shortened to UHMW), stands for Ultra High Molecular Weight Polyethylene. It-s this extremely high molecular weight that gives UHMW-PE an unsurpassed combination of slickness, toughness and chemical resistance. It-s a common plastic encountered every day in the form of food containers, milk containers, and many home appliances. Because of its low coefficient of friction, UHMW-PE is self-lubricating; it replaces unwanted grease and oil in many applications such as bearings and conveyors. UHMW-PE has a "No Break" Impact Strength rating, meaning it will pierce though or be cut before breakage occurs. Piercing occurs at approximately (Notched Izod at 73°F) 19 - 34 ft-lbs/in. MSCEASAMPLEPACKS
|
