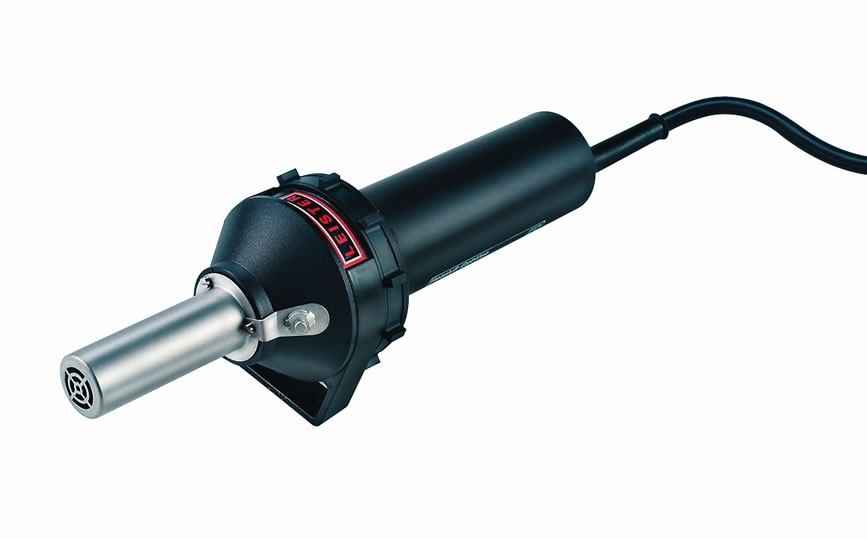

The most compact hand tool from Leister, the HOT JET S is lightweight (just 1.3 lbs) and especially suited for welding in difficult-to-reach or tight areas. With the HOT JET S, you get high-powered, fatigue-free welding. LEISTER Part # 100.859
- Simple, electronically controlled temperature and air flow
- Electronic heating element protection
- Low noise
- Integrated flexible tool stand
[Operating Manual]
[HOT JET S Parts drawing]
Suitability: We take pride in the quality of our materials as they leave our facility. However, because every project is unique, we cannot account for how materials are modified, stored, or used after delivery. Please perform the necessary tests to ensure this material is right for your specific application and end-use conditions.
HOTJETS100.859
|
|
The Hot Jet S is a diverse hot air gun that is used in the roofing market for doing patch and repairs on TPO, PVC and other thermoplastic membranes, flooring industry for welding marmoleum and linoleum flooring, in the rework of surface mount electronic components and as a shrink sleeve hot air tool. How you can use the HOT JET S:- Solder and unsolder surface mount devices (SMDs) and wired components
- Weld thermoplastic polymers and individual elastoplastic plates, pipes, profiles, sealing material, coated fabrics, foils, foams, tiles and sheathing
- Shrink heat-shrinkable tubing or sleeves, foils, sheathing, solder connectors and form components
- Activate/dissolve solvent-free and hot-melt adhesives
- Dry moist surfaces
Specs - Voltage: 120 V
- Frequency: 50/60 Hz
- Power: 460 W
- Temperature: 70-1100?F
- Air Volume (68?F): 0.7 - 2.8 cfm
- Pressure Static: 230-1600 Pa
- ? Nozzle Holder: 0.8 in.
- Emission: 59 dB(A)
- Size (L x ?): 9 x 3 in., Handle ? 1.6
- Weight: 1.3 lbs (without power cord)
|
