Arc- and Track-Resistant NEMA GPO-3 Electrical Insulation Sheet

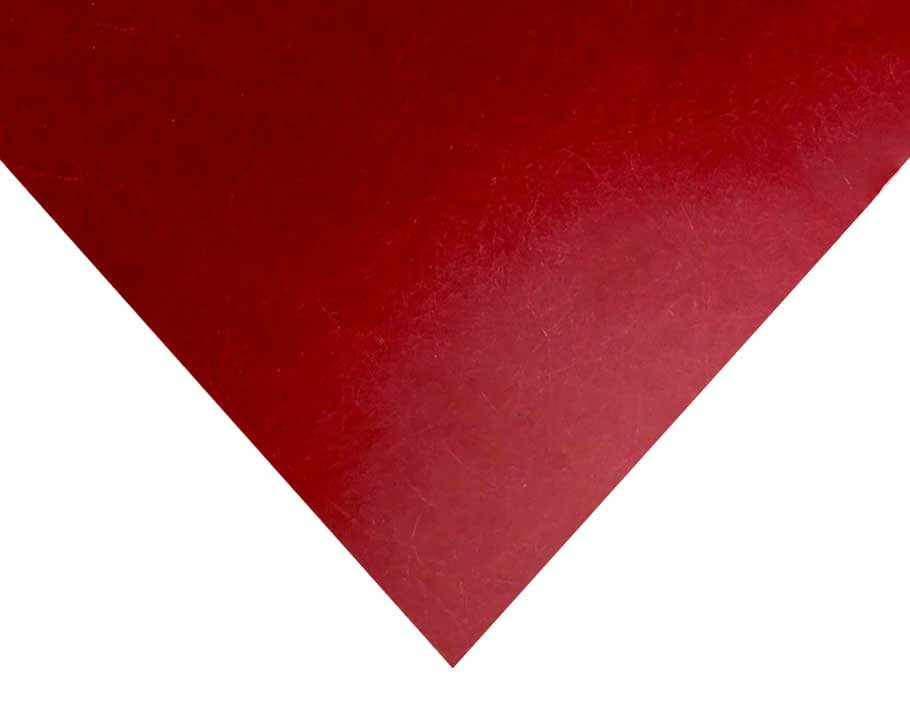

NEMA GPO-3 glass polyester laminate is a red fiberglass-reinforced thermoset electrical insulation sheet with UL-recognized status under QMFZ2.E101063. It combines strong arc and track resistance with UL 94 V-0 flame performance, low smoke generation, and low flame spread characteristics for electrical and transit applications.
GPO-3 is used for switchgear barriers, mounting panels, power distribution components, high-voltage appliance insulators, and other parts that need a balance of electrical insulation and mechanical strength.

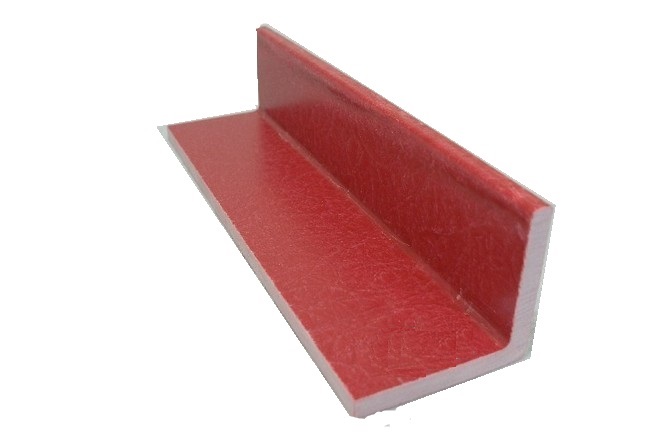

GPO-3 channels are also available - call us at 888-768-5759. For alternate laminate requirements, compare GPO-3 with G-10/FR4 Glass Epoxy or G-7 Glass-Silicone.
Why Choose GPO-3 Sheet?
GPO-3 is used in electrical insulation components where resistance to tracking, arcing, and flame spread is important. Consider this material if your application requires:
Track Resistance:
Helps resist conductive paths from forming across the surface in demanding electrical environments.
Arc Resistance:
Withstands electrical arcing better than many general-purpose insulation materials.
Flame Performance:
Offers flame-retardant performance, with qualifying grades and thicknesses carrying a UL 94 V-0 classification.
Low Smoke & Flame Spread:
Low smoke generation and low flame spread characteristics support electrical equipment and transit-related applications.
Mechanical Support:
Provides the strength and rigidity needed for barriers, mounting panels, insulators, and other fabricated components.
GPO-3 vs. G-10/FR4: Which Do You Need?
Both are glass-reinforced thermoset electrical laminates, but their resin systems and performance priorities differ.
Choose GPO-3 (This Sheet) when arc resistance, tracking resistance, flame performance, and low smoke or flame spread characteristics are key considerations for switchgear, insulation barriers, or transit components.
Consider G-10/FR4 when higher mechanical strength, lower moisture absorption, or greater dimensional stability is a higher design priority.
Fabrication & Machining
GPO-3 can be machined using standard metalworking equipment for barriers, mounting panels, insulators, and other fabricated electrical components. As GPO-3 is a thermoset laminate rather than a melt-processable thermoplastic, finished shapes are generally produced through cutting and machining.
Handling: Cut sheets may have sharp edges. We recommend wearing protective gloves when unpacking and handling this material to ensure safety.
Suitability: We take pride in the quality of our materials as they leave our facility. However, because every project is unique, we cannot account for how materials are modified, stored, or used after delivery. Please perform the necessary tests to ensure this material is right for your specific application and end-use conditions.
fibruo sh
Technical Performance
GPO-3 is a fiberglass-reinforced thermoset polyester laminate designed for electrical insulation applications where arc resistance, tracking resistance, flame performance, and mechanical support must work together.
Resists the formation of conductive tracks across the surface and withstands exposure to electrical arcing.
Electrical Insulation:
Provides dependable dielectric performance for barriers, insulators, and components used around energized equipment.
Mechanical Support:
Offers the strength and rigidity needed to support electrical assemblies while remaining practical to cut and machine.
Key Properties
Flame-Retardant Performance:
Carries a UL 94 V-0 classification for applications where flame behavior is an important consideration.
Elevated-Temperature Strength:
Retains mechanical strength at elevated temperatures, but continuous-use limits should be confirmed for the specific application.
Low Smoke & Flame Spread:
Low smoke generation and low flame spread characteristics support consideration for transit and enclosed electrical equipment.
Moisture Resistance:
Maintains electrical-insulation performance where moisture or humidity may be present.
Common Industrial Applications
Switchgear: Barriers, phase isolation components, and mounting panels where arc and track resistance are important selection criteria.
Power Distribution: Insulating panels, barriers, and fabricated components used to electrically separate or support energized assemblies.
High-Voltage Equipment: Appliance insulators and related machined components requiring electrical insulation with useful mechanical strength.
Transit Equipment: Insulation components where GPO-3's low smoke generation, low flame spread characteristics, and flame classification align with the application's material requirements.
Engineering Limitations & Alternatives
GPO-3 offers a useful balance of electrical, flame, and mechanical properties, but certain applications or environments may require an alternative material:
Higher Mechanical Loads: GPO-3 has less overall mechanical strength than comparable glass-reinforced epoxy laminates, which can matter in highly loaded structural components. Better Alternative: For higher mechanical strength and electrical insulation in humid environments, consider G-10/FR4 Glass Epoxy.
Higher Thermal Requirements: GPO-3 cannot handle applications with more demanding thermal requirements past its specified limits. Better Alternative: For electrical laminate applications where higher temperature capability is needed and a V-0 fire rating is not required, consider G-11 Glass Epoxy.
