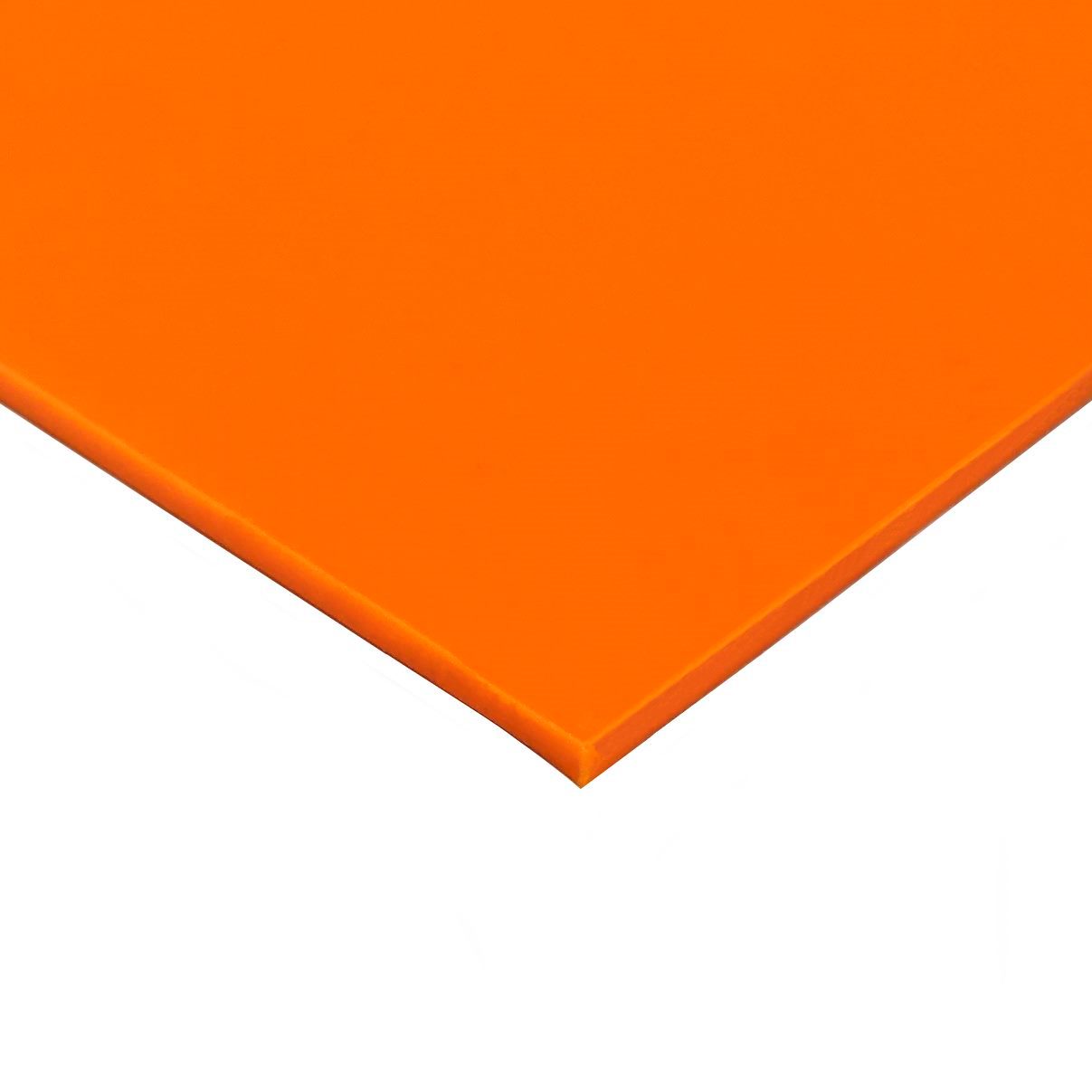

Orange Extruded Acetron GP Plate
|Get Your Online Pricing:
Sanitizing Acrylic and Polycarbonate »
Tips for measuring & cut-to-size policy »
How To Measure and Cut-To-Size Policy [X]
Cut-To-Size Items are Non-Returnable!
As per our Shipping and Returns Policy, custom cuts and fabricated parts are non-returnable. If you need an over- or undersized item, note it under "Comments" during Checkout. Cut-to-size orders have an acceptable cut tolerance of 1/8" (0.125"), so clarify if the adjustment is to be made on the (+) or (-) side of the saw blade. Please review our full return and shipping policy here.
Measure Twice, Cut Once
Since custom cuts and fabricated parts are non-refundable, be very careful while measuring your dimensions. As each cut is nominal, even the slightest miscalculation could be costly.
How to Use a Measuring Tape
Extend your tape measure several inches to find the 1 and 2 inch markers. In between the inch markers you’ll find 16 equally spaced tick marks.
Measure by counting the increments beyond the nearest inch. As the increments decrease, so does the length of the mark. For example, 1/2" has a bigger mark than 1/4" which has a bigger mark than 1/8". The smallest mark follows at 1/16". Please be aware that some measuring tapes may have even smaller increments.
Features of a Measuring Tape: Sliding End Hook
The sliding end hook is designed for two different types of measurements. An outside measurement (where the hook of the tape hangs over an edge), requires the hook to slide out a bit to account for the thickness of the material. When making an inside measurement (where the hook will push up against a surface), the clip slides in, again, accounting for its thickness. The measuring tape self-adjusts to guarantee an accurate measurement (as far as the tape is concerned).
Sanitizing Acrylic and Polycarbonate Sheet [X]
Acrylic and Polycarbonate Sneeze Guards and like products require special care while cleaning and disinfecting. To maintain the optical clarity of sneeze guards and other acrylic or polycarbonate items, use an acrylic or polycarbonate safe cleaner like Novus Plastic Polish #1, Brillianize Plastic Cleaner, or a mild soap solution.
Please reference the following compatible cleaners when DISINFECTING acrylic and polycarbonate items. The use of commonly available commercial alcohol or ammonia-based disinfectants may cause crazing and damage.
Compatible Polycarbonate Disinfectants:
• sBioMed Steriplex SD
• Safetec Surface Wipes
• Contec Healthcare Perodox RTU
• Contec Healthcare PS-911 EB Prostat Sterile Wipes
Compatible Acrylic Disinfectants:
• Pharmacy Grade Hydrogen Peroxide
• Household Bleach
• Isopropyl Alcohol (Water Diluted to 30% Strength)
[Download as a PDF]
|As low as $9/month with |
Acetal (Polyoxymethylene or POM) provided by Interstate Plastics is a tough, machinable thermoplastic with a high modulus of elasticity, high strength, good rigidity, dimensional stability, and resistances to moisture, chemicals and solvents. It has desirable toughness properties, performing well at extreme temperatures and under fatigue endurance. A low coefficient of friction (COF) alongside excellent wear properties, especially in wet or moist environments, makes acetal one of the most widely used engineering thermoplastics on the market today.
Low Moisture Absorption
Acetal is ideal when working in wet environments as it absorbs minimal amounts of moisture, and with a high level of heat resistance, can be heated or cooled without affecting form or dimensionality. Acetal is used in hot water applications up to 140°F without any hydrolysis effect. Unlike other materials that may erode from acidic water, hard water does not harm acetal.
High Strength & Stiffness
Due to rigidity, resilience, toughness and strength, acetal does not become brittle even with long-term exposure to unfavorable conditions including extremely high temperatures.
Easy to Machine
Acetal plastic is available in extruded rod and sheets for machined parts. Interstate Plastics carries sheet grades of copolymer acetal that are readily machined with standard machining practices. Any machining tool that is capable of high speed without vibration can be used.
[PDF Spec Sheet]
- High strength and stiffness
- Resistances to hot water and high pH (basic) solutions
- Excellent dimensional stability
- Continuous use temperature at 180°F
- Consistent properties in wet or moist environments
- Very low moisture absorption
- Excellent electrical properties
- Easy to machine to close tolerances
- FDA and USDA compliant grades available
