HOME > UHMW

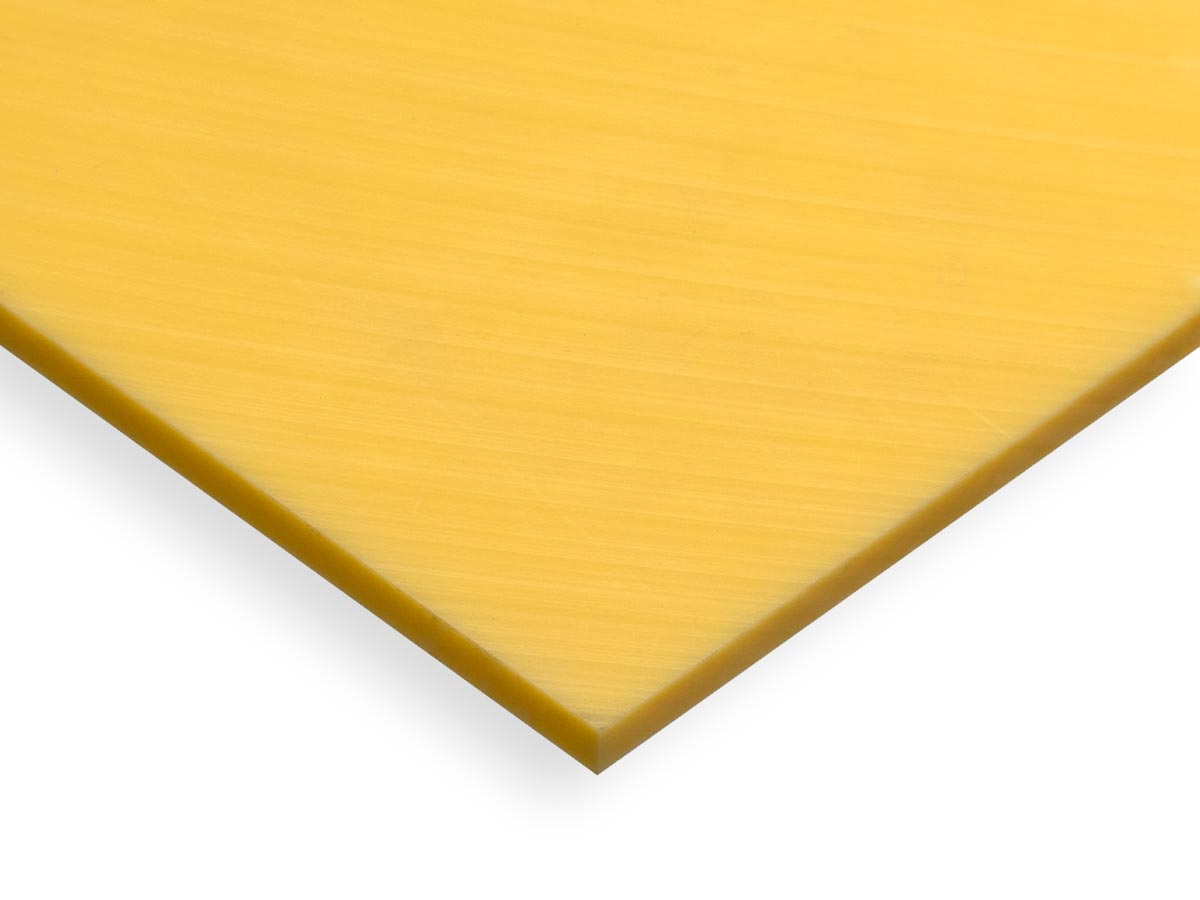

UHMW Sheet | Yellow Virgin

Virgin Ultra High Molecular Weight Polyethylene Sheet


Get Your Online Pricing: Sanitizing Acrylic and Polycarbonate »
Tips for measuring & cut-to-size policy »

How To Measure and Cut-To-Size Policy [X]


Cut-To-Size Items are Non-Returnable!

As per our Shipping and Returns Policy, custom cuts and fabricated parts are non-returnable. If you need an over- or undersized item, note it under "Comments" during Checkout. Cut-to-size orders have an acceptable cut tolerance of 1/8" (0.125"), so clarify if the adjustment is to be made on the (+) or (-) side of the saw blade. Please review our full return and shipping policy here.

Measure Twice, Cut Once

Since custom cuts and fabricated parts are non-refundable, be very careful while measuring your dimensions. As each cut is nominal, even the slightest miscalculation could be costly.

How to Use a Measuring Tape

Extend your tape measure several inches to find the 1 and 2 inch markers. In between the inch markers you’ll find 16 equally spaced tick marks.

Measure by counting the increments beyond the nearest inch. As the increments decrease, so does the length of the mark. For example, 1/2" has a bigger mark than 1/4" which has a bigger mark than 1/8". The smallest mark follows at 1/16". Please be aware that some measuring tapes may have even smaller increments.

Features of a Measuring Tape: Sliding End Hook

The sliding end hook is designed for two different types of measurements. An outside measurement (where the hook of the tape hangs over an edge), requires the hook to slide out a bit to account for the thickness of the material. When making an inside measurement (where the hook will push up against a surface), the clip slides in, again, accounting for its thickness. The measuring tape self-adjusts to guarantee an accurate measurement (as far as the tape is concerned).

Sanitizing Acrylic and Polycarbonate Sheet [X]


Acrylic and Polycarbonate Sneeze Guards and like products require special care while cleaning and disinfecting. To maintain the optical clarity of sneeze guards and other acrylic or polycarbonate items, use an acrylic or polycarbonate safe cleaner like Novus Plastic Polish #1, Brillianize Plastic Cleaner, or a mild soap solution.

Please reference the following compatible cleaners when DISINFECTING acrylic and polycarbonate items. The use of commonly available commercial alcohol or ammonia-based disinfectants may cause crazing and damage.

Compatible Polycarbonate Disinfectants:

• sBioMed Steriplex SD
• Safetec Surface Wipes
• Contec Healthcare Perodox RTU
• Contec Healthcare PS-911 EB Prostat Sterile Wipes

Compatible Acrylic Disinfectants:

• Pharmacy Grade Hydrogen Peroxide
• Household Bleach
• Isopropyl Alcohol (Water Diluted to 30% Strength)

[Download as a PDF]


Width

inches
Length

inches
Thickness:

inches
Quantity:


Price per Sheet: $25.03

Total Price: $25.03
Options:
Rounded/Chamfered Edges (45 degrees): ($8)
Rounded Corners (in.):
#Holes Per Sheet ($2/hole) - Please upload your drawing:
Available hole sizes: 1/8”, 5/32”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, ½”, 9/16”, 5/8”, 11/16”, ¾”, 13/16”, 7/8”, 15/16”, and 1”

As low as $2/month with Credit Key

Overview Specs & Uses Reviews Inquiry
UHMYV SH - Overview

UHMW (Ultra High Molecular Weight Polyethylene) is a common machinable plastic known for durability, versatility and cost-effectiveness as well as abrasion, impact and chemical resistances. Yellow virgin UHMW is used in applications where high levels of friction are likely to arise including conveyor guard rails, augers and wear strips, belt scrapers, chain guides, and idler rollers. Due to an extremely low coefficient of friction, its inherent lubricity minimizes heat-generating friction that tends to gradually destroy steel parts, and ensures smooth, noiseless operation. UHMW is also known by brand names including IPX®, Polystone®, Tecafine®, Dyneema®, Tivar®, Polysteel®, GUR®, Utec® and Mipelon®.

Known for an extremely high molecular weight, UHMW features an unsurpassed combination of slickness, toughness and chemical resistance. UHMW's molecular weight ranges from 3.1 million to 100 million grams per mole, with an abrasion resistance that continues to improve as molecular weight increases. UHMW is easy to machine with common woodworking tools, making it extremely cost effective, and outperforms metal in many applications. High durability, low friction and wear resistance are key reasons why UHMW is the material of choice for many applications. UHMW can be machined into virtually anything from small gears and bearings to huge sprockets.

Self-Lubricating Formula
High durability, low friction and wear resistance are key reasons why UHMW is the material of choice for a myriad of applications. UHMW offers an extremely low coefficient of friction due to a specialized built-in lubricant that replaces unwanted grease and oil. It also enhances efficiency and productivity in many applications. UHMW's self-lubricating formula helps to extend part life because the internal lubricant ensures that parts will not break or need replacement.



Features

[PDF Spec Sheet]

  • Odorless, tasteless and nontoxic
  • Highly resistant to corrosive chemicals (except oxidizing acids)
  • Extremely low moisture absorption
  • Very low coefficient of friction
  • Self-lubricating
  • Highly resistant to wear and abrasion
  • Easy to fabricate and machine with common shop and woodworking tools
  • Reprocessed grades, enhanced bearing and wear grades available, FDA compliant grades available for greatly extended part life
  • Reduced maintenance costs and energy consumption
  • Extends equipment life

NEED A UHMW SAMPLE?
Machinable Plastics Material Sample Pack
Impact Strength Material Sample Pack
Friction Resistance Material Sample Pack



WARNING: Sharp Edges! Handle with care.
Warning: This product may have sharp edges and points. Contact may result in injury. Handle with care.

Disclaimer: Interstate Plastics makes no representations about any of its products that are modified in any way after they leave its possession, nor do its representations apply when any of its products are improperly used or stored. Each customer of Interstate Plastics bears full responsibility for making its own determination as to the suitability of each material, product, recommendation or advice provided by Interstate Plastics. Each customer of Interstate Plastics must identify and perform all tests and analyses necessary to assure that its finished parts incorporating materials from Interstate Plastics will be safe and suitable for use under end-use conditions.
