KING HY-PACT® INDUSTRIAL POLYMER SHEET
Environmentally stabilized, super tough, cost effective industrial polymer sheet.
3 stars based on 3 Review(s)
|Get Your Online Pricing:
Tips for measuring & cut-to-size policy »
How To Measure and Cut-To-Size Policy |
Cut-To-Size Items are Non-Returnable!
As per our Shipping and Returns Policy, custom cuts and fabricated parts are non-returnable. If you need an over- or undersized item, note it under "Comments" during Checkout. Cut-to-size orders have an acceptable cut tolerance of 1/8" (0.125"), so clarify if the adjustment is to be made on the (+) or (-) side of the saw blade. Please review our full return and shipping policy here.
Measure Twice, Cut Once
Since custom cuts and fabricated parts are non-refundable, be very careful while measuring your dimensions. As each cut is nominal, even the slightest miscalculation could be costly.
How to Use a Measuring Tape
1.) Extend your tape measure several inches to find the 1 and 2 inch markers. In between the inch markers you’ll find 16 equally spaced tick marks.
2.) Measure your space by counting the increments beyond the nearest inch. (If your space measures 7 inches plus 8 tick marks, that is 8/16 à 1/2. Your space is 7-1/2" on one side.)
3.) Another example: If your space is 7 inches and 9 marks past that, your material should be 7-9/16".
Features of a Measuring Tape: Sliding End Hook
The sliding end hook is designed for two different types of measurements. An outside measurement (where the hook of the tape hangs over an edge), requires the hook to slide out a bit to account for the thickness of the material. When making an inside measurement (where the hook will push up against a surface), the clip slides in, again, accounting for its thickness. The measuring tape self-adjusts to guarantee an accurate measurement (as far as the tape is concerned).
King Hy-Pact® provided by Interstate Plastics is an extremely tough, environmentally stabilized, cost effective industrial polymer sheet, with exceptional physical properties.
Tests have shown after 2,000 hours of UV exposure, King Hy-Pact® outperforms both UV stabilized HDPE and UHMW, with superior toughness in wear resistance, flexibility and high-impact strength. Compared to competing materials, King Hy-Pact® can save 25% to 30% in material costs.
King Hy-Pact® provided by Interstate Plastics has a clean white color with a smooth, non-skived finish for better material flow. King Hy-Pact is a product of a proprietary process called K-Stran®, the most advanced manufacturing process for producing sheets with widths up to 72", tight tolerances, custom colors and sheet sizes. King Hy-Pact is the smart choice for many high abuse applications requiring superior properties, outstanding flatness and a smooth surface while providing significant cost savings.

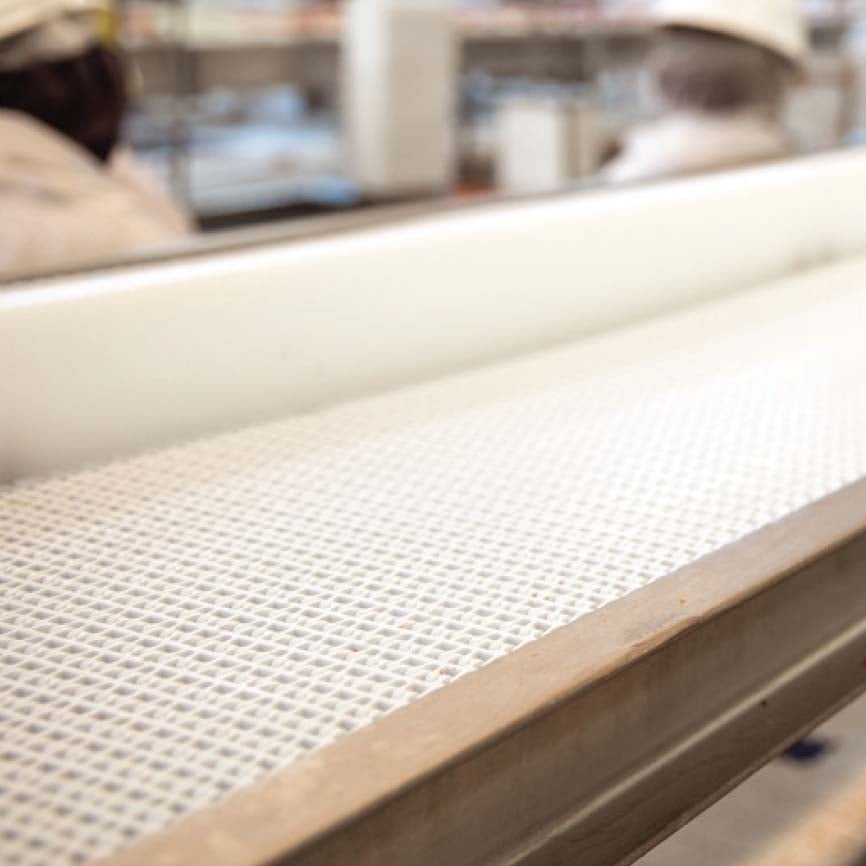

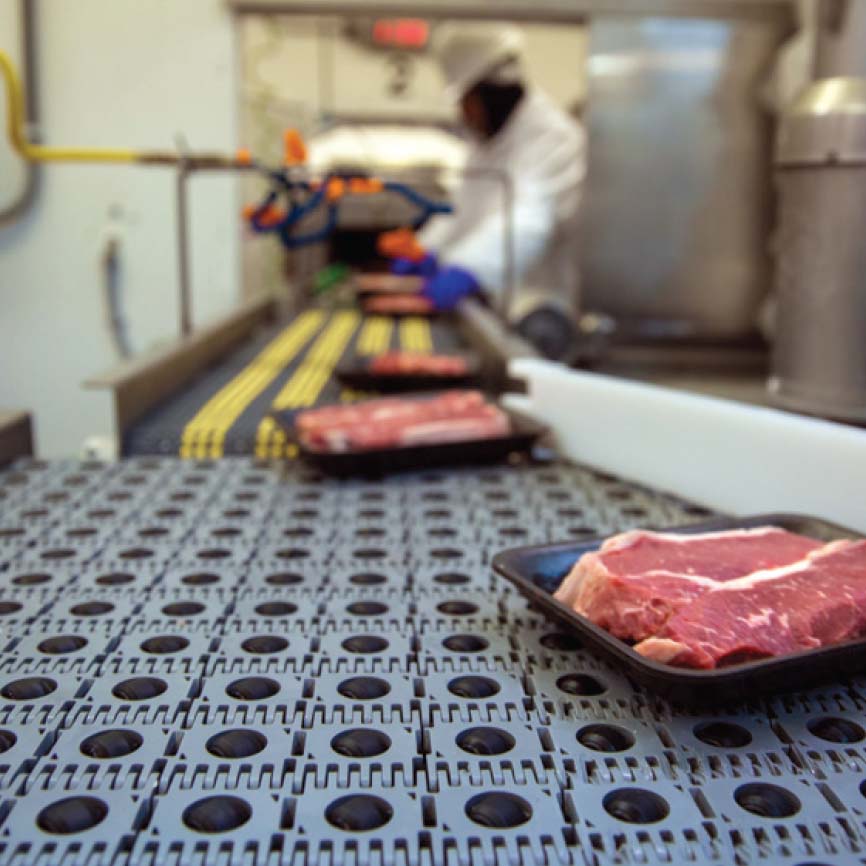

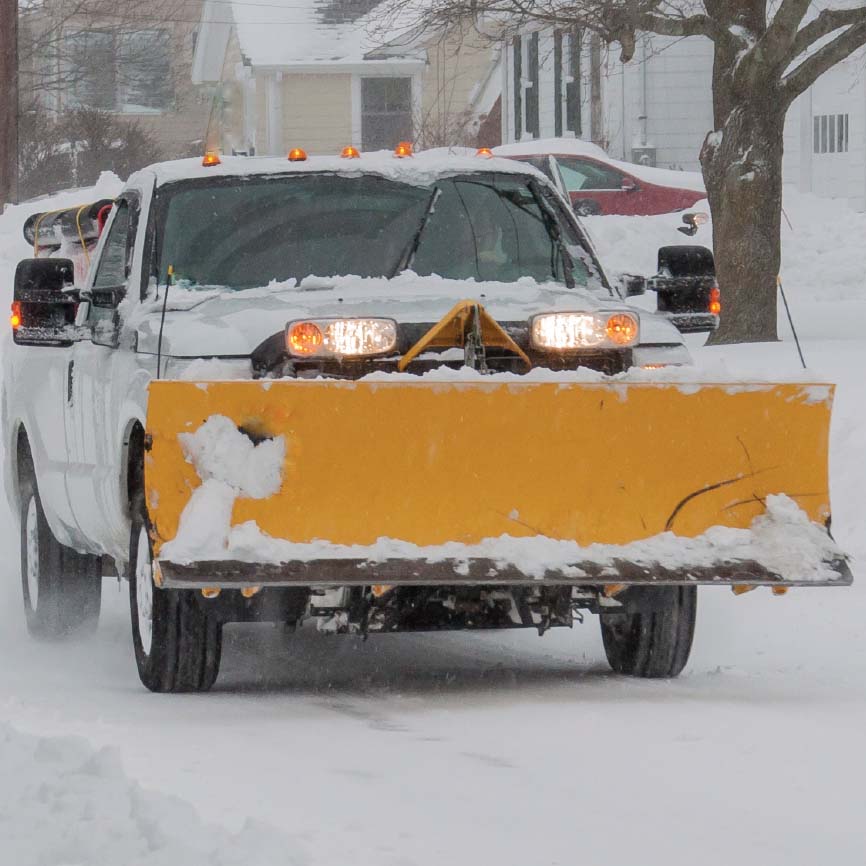

Applications for King Hy-Pact® include, but are not limited to, food processing chutes, star wheels, machine products, snowplow blades, and dock fenders. King HY-PACT® is made entirely from FDA approved materials.
• Abrasion and Wear
• Bin and Mixer Linings
• Chain and Belt Guides
• Conveyor Wear and Guide Rails
• Dock Fenders
• Food Processing
• Low Temperature Applications
• Machine Parts
• Material Handling
• Star Wheels
• Truck Bedliners

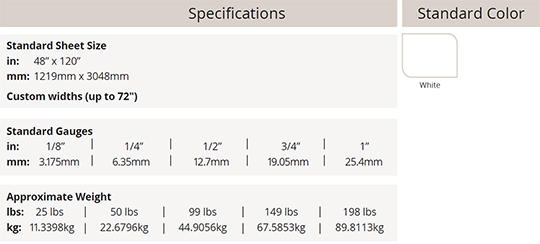

[PDF Specifications Sheet]

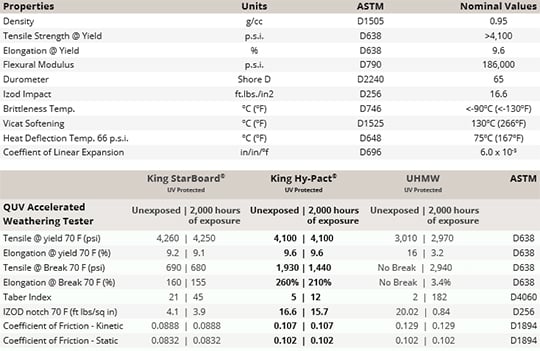

All values are determined on specimens prepared according to ASTM Standards:
