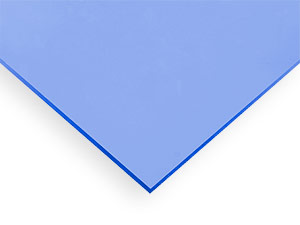

LAM 2000® | CPVC (FM4910) CLEAR/BLUE SHEET
Clear fire resistant sheet for clean room glazing applications.
|Get Your Online Pricing:
Sanitizing Acrylic and Polycarbonate »
Tips for measuring & cut-to-size policy »
How To Measure and Cut-To-Size Policy [X]
Cut-To-Size Items are Non-Returnable!
As per our Shipping and Returns Policy, custom cuts and fabricated parts are non-returnable. If you need an over- or undersized item, note it under "Comments" during Checkout. Cut-to-size orders have an acceptable cut tolerance of 1/8" (0.125"), so clarify if the adjustment is to be made on the (+) or (-) side of the saw blade. Please review our full return and shipping policy here.
Measure Twice, Cut Once
Since custom cuts and fabricated parts are non-refundable, be very careful while measuring your dimensions. As each cut is nominal, even the slightest miscalculation could be costly.
How to Use a Measuring Tape
Extend your tape measure several inches to find the 1 and 2 inch markers. In between the inch markers you’ll find 16 equally spaced tick marks.
Measure by counting the increments beyond the nearest inch. As the increments decrease, so does the length of the mark. For example, 1/2" has a bigger mark than 1/4" which has a bigger mark than 1/8". The smallest mark follows at 1/16". Please be aware that some measuring tapes may have even smaller increments.
Features of a Measuring Tape: Sliding End Hook
The sliding end hook is designed for two different types of measurements. An outside measurement (where the hook of the tape hangs over an edge), requires the hook to slide out a bit to account for the thickness of the material. When making an inside measurement (where the hook will push up against a surface), the clip slides in, again, accounting for its thickness. The measuring tape self-adjusts to guarantee an accurate measurement (as far as the tape is concerned).
Sanitizing Acrylic and Polycarbonate Sheet [X]
Acrylic and Polycarbonate Sneeze Guards and like products require special care while cleaning and disinfecting. To maintain the optical clarity of sneeze guards and other acrylic or polycarbonate items, use an acrylic or polycarbonate safe cleaner like Novus Plastic Polish #1, Brillianize Plastic Cleaner, or a mild soap solution.
Please reference the following compatible cleaners when DISINFECTING acrylic and polycarbonate items. The use of commonly available commercial alcohol or ammonia-based disinfectants may cause crazing and damage.
Compatible Polycarbonate Disinfectants:
• sBioMed Steriplex SD
• Safetec Surface Wipes
• Contec Healthcare Perodox RTU
• Contec Healthcare PS-911 EB Prostat Sterile Wipes
Compatible Acrylic Disinfectants:
• Pharmacy Grade Hydrogen Peroxide
• Household Bleach
• Isopropyl Alcohol (Water Diluted to 30% Strength)
[Download as a PDF]
|As low as $0.09/month with |
LAM 2000 CPVC (FM4910, UL94 V-0, and ASTM E-84 Class A rated) clear sheet offers exceptional, consistent quality for semiconductor clean room equipment viewing windows. Clear with a slight blue tint, this "window grade" CPVC plastic performs well in environments that contain acids, oxidizers, and moderately aggressive alkalines. Due to its ASTM E-84 Class A rating, this plastic is also used for transparent glazing applications and as partitions for data centers. A gray color is also offered on request.
LAM 2000 CPVC, FM4910 and ASTM E-84 Class A rated sheet has been found exceptionally useful for the following applications:
- Clean room equipment
- Clean room windows
- Data center windows
- Data center partitions
- Access panels, covers, and guards
[CPVC 2000 Data Sheet PDF]
- Meets FM4910 and UL94 V-0 requirements
- ASTM E-84 Class A rated for data centers
- Optically clear (with slight blue tint) with high light transmission
- No lead (Pb), heavy metals, or EPA SARA 313 reportable components
WARNING: This product can expose you to chemicals including Polyvinyl Chloride, CAS 9002-86-2, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Warning: This product may have sharp edges and points. Contact may result in injury. Handle with care.
Disclaimer: Interstate Plastics makes no representations about any of its products that are modified in any way after they leave its possession, nor do its representations apply when any of its products are improperly used or stored.
Each customer of Interstate Plastics bears full responsibility for making its own determination as to the suitability of each material, product, recommendation or advice provided by Interstate Plastics. Each customer of Interstate Plastics must identify and perform all tests and analyses necessary to assure that its finished parts incorporating materials from Interstate Plastics will be safe and suitable for use under end-use conditions.
