NUDO CERAMICSTEEL | PORCELAIN ENAMELED STEEL SURFACE SHEET

Class A fire rated USDA, FDA, and LA County compliant decorative panels for walls and ceilings.


Get Your Online Pricing: Sanitizing Acrylic and Polycarbonate »
Tips for measuring & cut-to-size policy »

How To Measure and Cut-To-Size Policy [X]


Cut-To-Size Items are Non-Returnable!

As per our Shipping and Returns Policy, custom cuts and fabricated parts are non-returnable. If you need an over- or undersized item, note it under "Comments" during Checkout. Cut-to-size orders have an acceptable cut tolerance of 1/8" (0.125"), so clarify if the adjustment is to be made on the (+) or (-) side of the saw blade. Please review our full return and shipping policy here.

Measure Twice, Cut Once

Since custom cuts and fabricated parts are non-refundable, be very careful while measuring your dimensions. As each cut is nominal, even the slightest miscalculation could be costly.

How to Use a Measuring Tape

Extend your tape measure several inches to find the 1 and 2 inch markers. In between the inch markers you’ll find 16 equally spaced tick marks.

Measure by counting the increments beyond the nearest inch. As the increments decrease, so does the length of the mark. For example, 1/2" has a bigger mark than 1/4" which has a bigger mark than 1/8". The smallest mark follows at 1/16". Please be aware that some measuring tapes may have even smaller increments.

Features of a Measuring Tape: Sliding End Hook

The sliding end hook is designed for two different types of measurements. An outside measurement (where the hook of the tape hangs over an edge), requires the hook to slide out a bit to account for the thickness of the material. When making an inside measurement (where the hook will push up against a surface), the clip slides in, again, accounting for its thickness. The measuring tape self-adjusts to guarantee an accurate measurement (as far as the tape is concerned).

Sanitizing Acrylic and Polycarbonate Sheet [X]


Acrylic and Polycarbonate Sneeze Guards and like products require special care while cleaning and disinfecting. To maintain the optical clarity of sneeze guards and other acrylic or polycarbonate items, use an acrylic or polycarbonate safe cleaner like Novus Plastic Polish #1, Brillianize Plastic Cleaner, or a mild soap solution.

Please reference the following compatible cleaners when DISINFECTING acrylic and polycarbonate items. The use of commonly available commercial alcohol or ammonia-based disinfectants may cause crazing and damage.

Compatible Polycarbonate Disinfectants:

• sBioMed Steriplex SD
• Safetec Surface Wipes
• Contec Healthcare Perodox RTU
• Contec Healthcare PS-911 EB Prostat Sterile Wipes

Compatible Acrylic Disinfectants:

• Pharmacy Grade Hydrogen Peroxide
• Household Bleach
• Isopropyl Alcohol (Water Diluted to 30% Strength)

[Download as a PDF]

  0.25" x 48" x 120" - CeramicSteel HDF - New White Matte
  0.25" x 48" x 96" - CeramicSteel HDF - New White Matte
  Trim Accessory - 10 ft. Division Bar
  Trim Accessory - 10 ft. End Cap
  Trim Accessory - 10 ft. Inside Corner
  Trim Accessory - 10 ft. Outside Corner
  Trim Accessory - 10 ft. Reveal

Save with our Volume Pricing:
QuantityPrice Each
10->19$551
20->49$522
50+$493


Total Price: $580.00



Overview Specs & Uses Reviews Inquiry
NUDOCERAMICSTEELHDF - Overview

NUDO CeramicSteel high performance decorative panels combine a porcelain enameled steel surface with a High Density Fiberboard (HDF) substrate, perfect for high traffic environments in both new construction and renovation projects. These sheets are considered to be "graffiti proof" due to its waterproof and anti-graffiti laminate coating.

Other core options are available, including High Density Fiberboard (HDF), Aluminum Composite (ACM), and Cement Board. Decorative and durable, CeramicSteel offers solutions for all your design performance requirements. Please call Interstate Plastics for colors, substrates, or finishes not listed on the website.



Features

[CeramicSteel Technical Data]

[CeramicSteel Brochure]

NUDO CeramicSteel features a colorfast, stain, and scratch resistant surface and a water resistant core. Their inert surface is made from 99% recyclable materials that offer exceptionally high impact resistance. Anti-graffiti coating ensures graffiti removal is made easy with no residue left behind. No special maintenance is required and panels can be cleaned with detergent or solvent.

  • Designed tough to meet the needs of demanding spaces.
  • Multipurpose magnetic surface is made of a precisely balanced color porcelain enamel that is furnace-fused to 24 gauge steel at approximately 1450°F.
  • Laminated surface using a special waterproof resin glue.
  • Bonded to a moisture resistant core of your choice and an .010" aluminum backer.
  • Class A Fire-Rating.
  • Meets USDA, FDA and LA County requirements for walls and ceilings.
  • Ceramic inks for digital printing are made with Blue, Green, Yellow, Red, and Black organic pigments that are mixed from minerals naturally present in the earth.

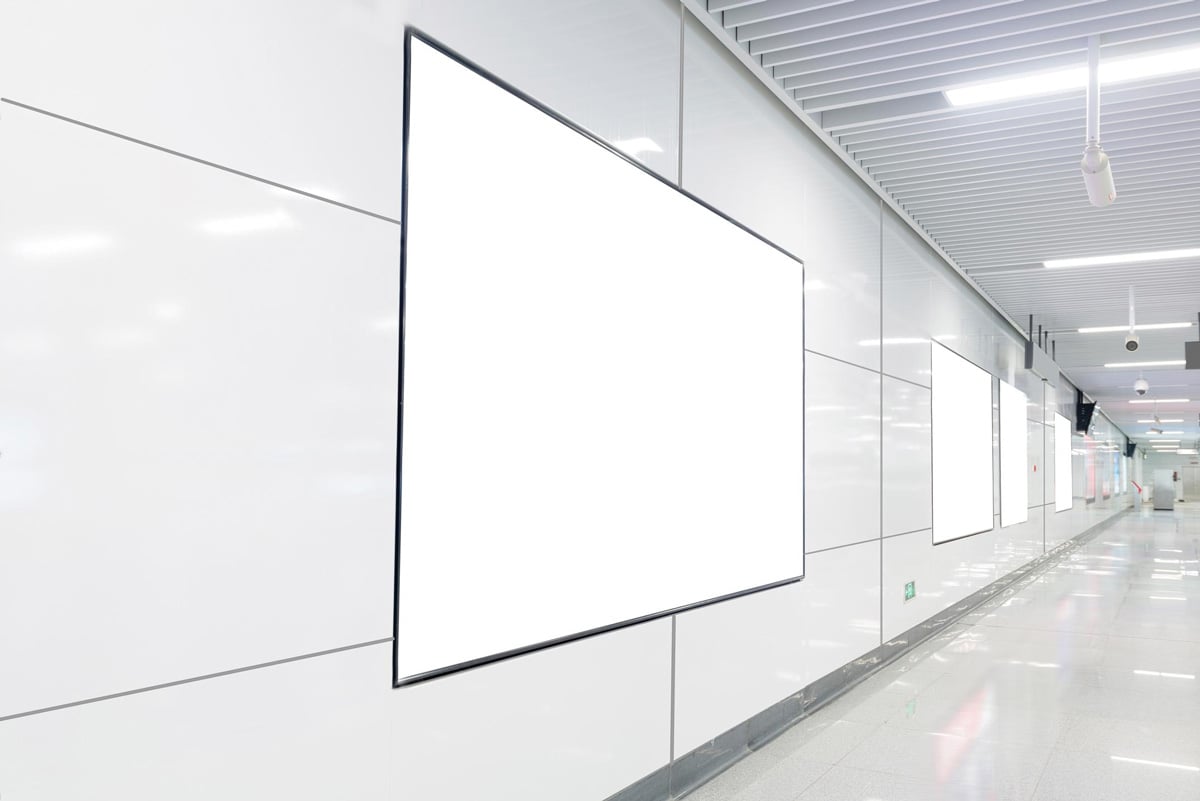

Popular applications include:

  • Airports
  • Healthcare Facilities
  • Sporting Venues

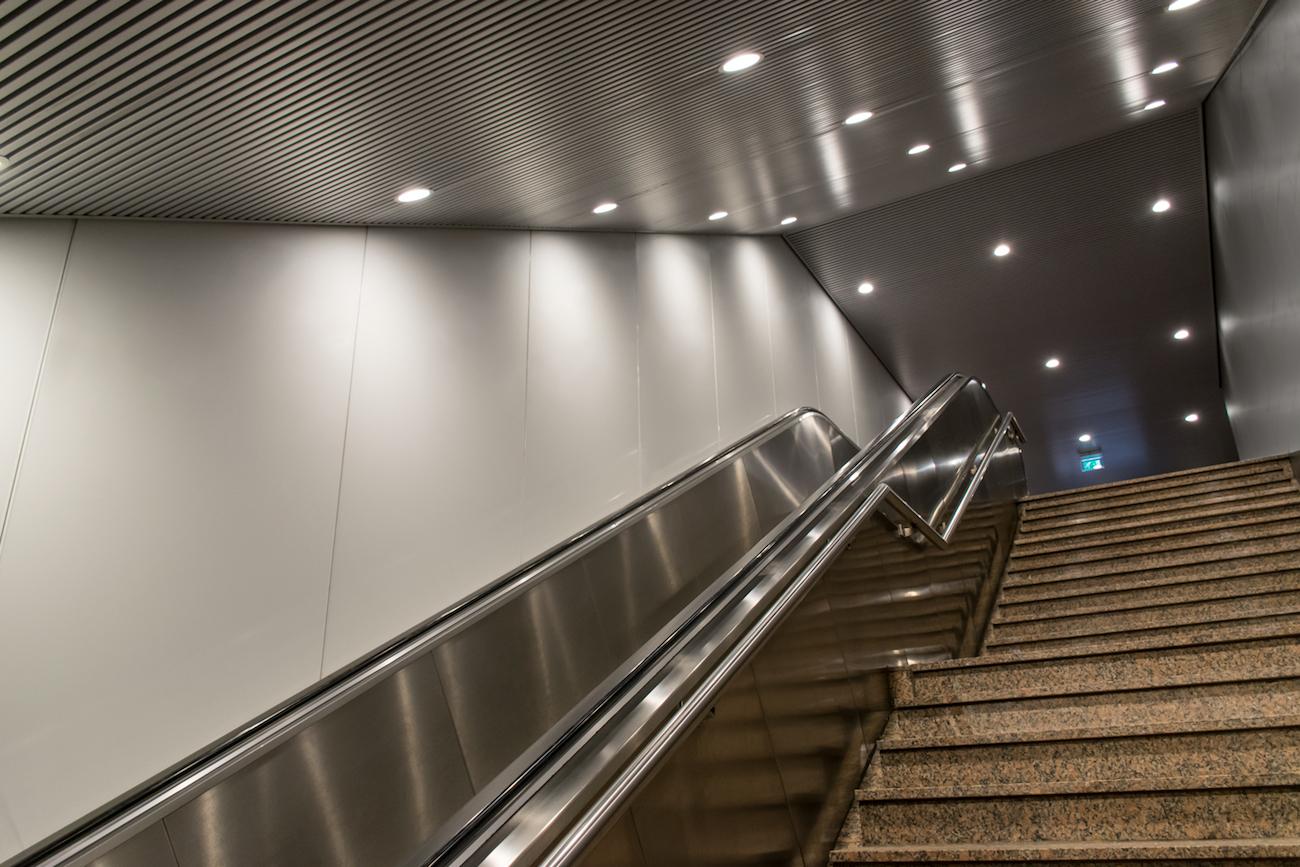

  • Escalator Cladding
  • Laboratories
  • Lobbies
  • Educational Facilities
  • Shopping Malls
  • Corporate Spaces
  • Hospitality
  • Pony Walls
  • Columns
  • Corridors


Material Warnings

 WARNING: This product can expose you to chemicals including Benzene, CAS 107-13-1, Carbon Black, CAS 1333-86-4, Naphthalene, CAS 91-20-3, and Titanium Dioxide, CAS 13463-67-7, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

WARNING: This product can expose you to chemicals including Styrene, CAS 100-42-5, Cadmium, 7440-43-9, Lead, CAS 7439-92-1, Silica, CAS 7631-86-9, and Formaldehyde, CAS 50-00-0, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

WARNING: This product can expose you to chemicals including Chromium hexavalent and Crystalline and Wood/Wood Dust, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

WARNING: Sharp Edges! Handle with care.
Warning: This product may have sharp edges and points. Contact may result in injury. Handle with care.

Disclaimer: Interstate Plastics makes no representations about any of its products that are modified in any way after they leave its possession, nor do its representations apply when any of its products are improperly used or stored. Each customer of Interstate Plastics bears full responsibility for making its own determination as to the suitability of each material, product, recommendation or advice provided by Interstate Plastics. Each customer of Interstate Plastics must identify and perform all tests and analyses necessary to assure that its finished parts incorporating materials from Interstate Plastics will be safe and suitable for use under end-use conditions.
