PEEK Router Bit | Double Flute Plastic Router Bit | Onsrud CNC Router Tool

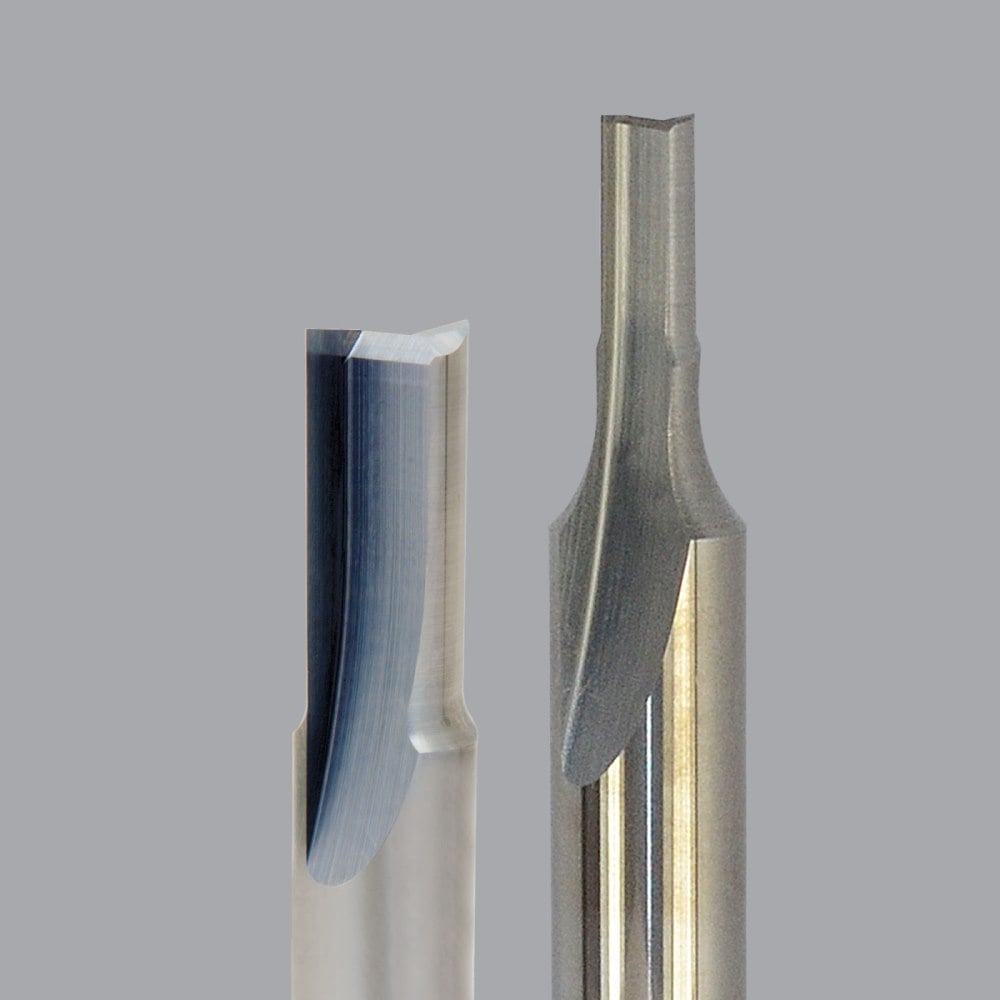

Double flute solid carbide router bit for PEEK



(CMD56-041) | 2" Overall Length x 1/4" Shank Diameter | 1/4" Cutting Length x 1/8" Cutting Diameter $32.85
(CMD56-061) | 2" Overall Length x 1/4" Shank Diameter | 3/8" Cutting Length x 3/16" Cutting Diameter $32.85
(CMD56-062) | 2" Overall Length x 1/4" Shank Diameter | 5/8" Cutting Length x 3/16" Cutting Diameter $34.40
(CMD56-063) | 4" Overall Length x 1/4" Shank Diameter | 5/8" Cutting Length x 3/16" Cutting Diameter $64.20
(CMD56-081) | 2 1/2" Overall Length x 1/4" Shank Diameter | 3/8" Cutting Length x 1/4" Cutting Diameter  $34.55
(CMD56-082) | 2 1/2" Overall Length x 1/4" Shank Diameter | 3/4" Cutting Length x 1/4" Cutting Diameter $36.15
(CMD56-086) | 4" Overall Length x 1/4" Shank Diameter | 1 1/4" Cutting Length x 1/4" Cutting Diameter $67.70
(CMD56-121) | 2 1/2" Overall Length x 3/8" Shank Diameter | 5/8" Cutting Length x 3/8" Cutting Diameter $66.00
(CMD56-122) | 2 1/2" Overall Length x 3/8" Shank Diameter | 7/8" Cutting Length x 3/8" Cutting Diameter $68.20
(CMD56-124) | 6" Overall Length x 3/8" Shank Diameter | 1 5/8" Cutting Length x 3/8" Cutting Diameter $104.80
(CMD56-162) | 3" Overall Length x 1/2" Shank Diameter | 1" Cutting Length x 1/2" Cutting Diameter $107.40
(CMD56-164) | 6" Overall Length x 1/2" Shank Diameter | 2 1/8" Cutting Length x 1/2" Cutting Diameter $146.55

Total Price: $32.85

As low as $3/month with

Overview Specs & Uses Reviews Inquiry
CMD56 - Overview

Onsrud 56-000P series double flute, solid carbide, straight cut router bits are designed to route high performance plastics such as PEEK, Delrin, and Delrin II. They have a "Z" flute design which creates heavier chips that are easier to remove from the cut area. This design allows for roughing and finishing with only one tool and eliminates deburring by producing a finer surface finish.


Plastic router bits by Onsrud are an industry standard in high-quality featuring outstanding tool longevity, a tendency to stay sharper, a broad selection of sizes and most importantly a superior quality of cut. Onsrud router bits easily cut a variety of machinable plastics as well as materials including wood, plywood, MDF and other wood composites. Router cutters are available in a range of shank sizes.


How to Choose a Router Bit:
1. Router bits can cut a material as thick as the length of the flute.
2. Router bits can drill a material as deep as the width of the flute, making multiple passes until the material is fully cut.
3. Bit size is the full diameter and length of the bit. This is different from the flute size, which shows the depth and thickness of the cut.



Features
  • Double flute, solid carbide router bit
  • "Z" flute design creates heavier chips that are easier to remove from the cut area
  • Finer surface finish eliminates deburring
  • Designed for use with high performance plastics like PEEK, Delrin, and Delrin II
