HOME > POLYPROPYLENE

PROPYLUX® HS & HS2 SHEET

Heat Stabilized Polypropylene


Get Your Online Pricing: Sanitizing Acrylic and Polycarbonate »
Tips for measuring & cut-to-size policy »

How To Measure and Cut-To-Size Policy [X]


Cut-To-Size Items are Non-Returnable!

As per our Shipping and Returns Policy, custom cuts and fabricated parts are non-returnable. If you need an over- or undersized item, note it under "Comments" during Checkout. Cut-to-size orders have an acceptable cut tolerance of 1/8" (0.125"), so clarify if the adjustment is to be made on the (+) or (-) side of the saw blade. Please review our full return and shipping policy here.

Measure Twice, Cut Once

Since custom cuts and fabricated parts are non-refundable, be very careful while measuring your dimensions. As each cut is nominal, even the slightest miscalculation could be costly.

How to Use a Measuring Tape

Extend your tape measure several inches to find the 1 and 2 inch markers. In between the inch markers you’ll find 16 equally spaced tick marks.

Measure by counting the increments beyond the nearest inch. As the increments decrease, so does the length of the mark. For example, 1/2" has a bigger mark than 1/4" which has a bigger mark than 1/8". The smallest mark follows at 1/16". Please be aware that some measuring tapes may have even smaller increments.

Features of a Measuring Tape: Sliding End Hook

The sliding end hook is designed for two different types of measurements. An outside measurement (where the hook of the tape hangs over an edge), requires the hook to slide out a bit to account for the thickness of the material. When making an inside measurement (where the hook will push up against a surface), the clip slides in, again, accounting for its thickness. The measuring tape self-adjusts to guarantee an accurate measurement (as far as the tape is concerned).

Sanitizing Acrylic and Polycarbonate Sheet [X]


Acrylic and Polycarbonate Sneeze Guards and like products require special care while cleaning and disinfecting. To maintain the optical clarity of sneeze guards and other acrylic or polycarbonate items, use an acrylic or polycarbonate safe cleaner like Novus Plastic Polish #1, Brillianize Plastic Cleaner, or a mild soap solution.

Please reference the following compatible cleaners when DISINFECTING acrylic and polycarbonate items. The use of commonly available commercial alcohol or ammonia-based disinfectants may cause crazing and damage.

Compatible Polycarbonate Disinfectants:

• sBioMed Steriplex SD
• Safetec Surface Wipes
• Contec Healthcare Perodox RTU
• Contec Healthcare PS-911 EB Prostat Sterile Wipes

Compatible Acrylic Disinfectants:

• Pharmacy Grade Hydrogen Peroxide
• Household Bleach
• Isopropyl Alcohol (Water Diluted to 30% Strength)

[Download as a PDF]

Please Call us at (916) 679-5146 for pricing.
As low as 0% for 30 days with Credit Key

Overview Specs & Uses Reviews Inquiry
PROPROPYLUXHS - Overview

Heat stabilized polypropylene sheet, Propylux® HS, provides all of the outstanding properties found in standard polypropylene, but endures a special heat stabilizing process that allows it to withstand higher service temperatures with less water absorption. It is also laser-markable, features excellent chemical resistance and superior dimensional stability.

Its counterpart Propylux® HS2 was developed to offer higher temperature capability and additional dimensional stability as compared to Propylux® HS.

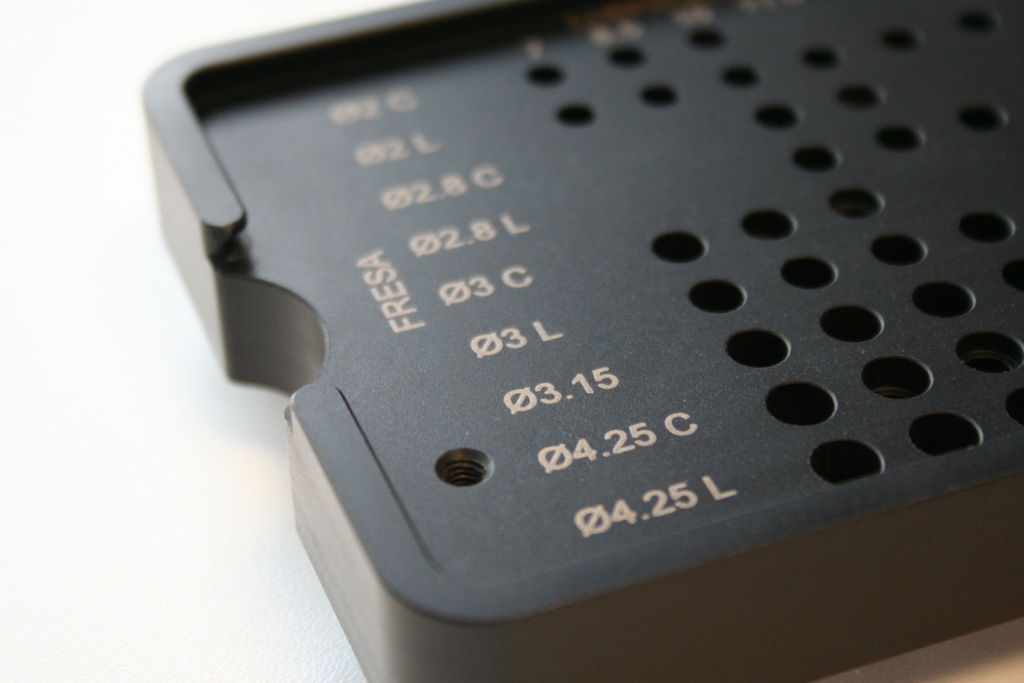

Propylux® HS and HS2 are produced from FDA approved polypropylene resins and are available in medical grade, lot-controlled and sterilized sheets only. Typical applications for Propylux® HS and Propylux® HS2 include provisional trials, cranio-maxillofacial trays and sterilization tray components. Recommended sterilization techniques for Propylux® HS2 include steam autoclaving and cold sterilization.



Features

  • Excellent chemical resistance
  • Laser markable
  • Lot controlled and traceable
  • Low moisture absorption
  • FDA, USP class VI approved
  • Superior dimensional stability

Physical Characteristics:
DensityD 15050.025%0.025%
Water AbsorptionD 5700.90 g/cm30.90 g/cm3

Mechanical Characteristics:
Tensile StrengthD 638
Yield34.7 MPa5.04 kpsi
Break27.3 MPa3.96 kpsi
Tensile ElongationD 638
Yield4.6%4.6%
Break20% - 60%20% - 60%
Tensile ModulousD 63820.1 MPa292 kpsi
Izod Impact (0.50")D 256
Notched0.48 J/cm0.90 ft-lbs/in
Un-notchedNBNB
Hardness (R Scale)D 7859292

Thermal Characteristics:
Heat Deflection Temp @ 66 psiD 648150302
Heat Deflection Temp @ 264 psi69671160



Material Warnings

Material Warning WARNING: This product can expose you to chemicals including Ethylene Oxide, CAS 75-21, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov .

WARNING: Sharp Edges! Handle with care.
Warning: This product may have sharp edges and points. Contact may result in injury. Handle with care.

Disclaimer: Interstate Plastics makes no representations about any of its products that are modified in any way after they leave its possession, nor do its representations apply when any of its products are improperly used or stored. Each customer of Interstate Plastics bears full responsibility for making its own determination as to the suitability of each material, product, recommendation or advice provided by Interstate Plastics. Each customer of Interstate Plastics must identify and perform all tests and analyses necessary to assure that its finished parts incorporating materials from Interstate Plastics will be safe and suitable for use under end-use conditions.
